Dory Machinery Manufacture Co.,Ltd

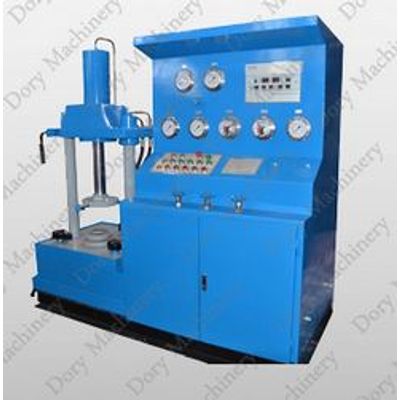

Dory - Model YFJ-L300 -Vertical Valve Test Bench
Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System.
Most popular related searches
valve testing
high-pressure pump
stainless steel tube
data acquisition system
blind flange
forged valve
valve testing system
flange adaptor
safety testing
corrosion inhibition
- Valve Types: Gate/Globe/Check/Ball/Control/Forged Steel Valves
- Size Range: 2``-12`` DN50-DN300
- Pressure Range: Class 150-Class1500
- Valve End Type: Flanged/BW/SW/NPT
- Designed to test Gate/Globe/Checl/Ball/Plug/Forged Steel Valves With flanged, BW ends, SW ends, NPT thread ends
- Size range: 2’’-12’’ DN50-DN300
- Pressure range: Class 150-Class1500 PN16-PN250 ( Pressure to be confirmed as different customers require different pressure , customization services available )
- Hydraulic Clamping system with jaws, by means of clamping flanges with blind flange adaptors ensure the positive seals of the valve flanges.
- Vertical Design with movable beam
- Stainless steel tubes and pipelines available
- With interlock functions for safety
- Testing fluid by water or air ,water with a corrosion inhibitor, according to international valve testing& Inspection standard like API598 etc
- Recycle water tanks
- Air driven liquid booster pump(Maximator or Haskel)
- Data acquisition system is available, including PLC,Touch screen, Printer,with test graphs & reports.
