Dory - Model YFJ-L300 - Vertical Valves ...

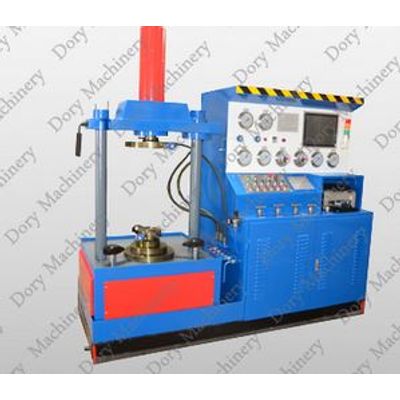

Dory - Model YFJ-L300 -Vertical Valves Test Bench with Touch Screen

FromDory Machinery Manufacture Co.,Ltd

SHARE

Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System.

Most popular related searches

high-pressure pump

stainless steel tube

data acquisition system

valve testing system

corrosion inhibition

Valve Types: Gate/Globe/Check/Ball/Control/Forged Steel Valves
Size Range: 2``-12`` DN50-DN300
Pressure Range: Class 150-Class1500
Valve End Type: Flanged/BW/SW/NPT

Designed to test Gate/Globe/Checl/Ball/Plug/Forged Steel Valves With flanged, BW ends, SW ends, NPT thread ends
Size range: 2’’-12’’ DN50-DN300
Pressure range: Class 150-Class1500 PN16-PN250 ( Pressure to be confirmed as different customers require different pressure , customization services available )
Hydraulic Clamping system with jaws, by means of clamping flanges with blind flange adaptors ensure the positive seals of the valve flanges.
Vertical Design with movable beam
Stainless steel tubes and pipelines available
With interlock functions for safety
Testing fluid by water or air ,water with a corrosion inhibitor, according to international valve testing& Inspection standard like API598 etc
Recycle water tanks
Air driven liquid booster pump(Maximator or Haskel)
Data acquisition system is available, including PLC,Touch screen, Printer,with test graphs & reports.
