Ozmak Muh. Mim. San. Tic. Ltd. Sti.

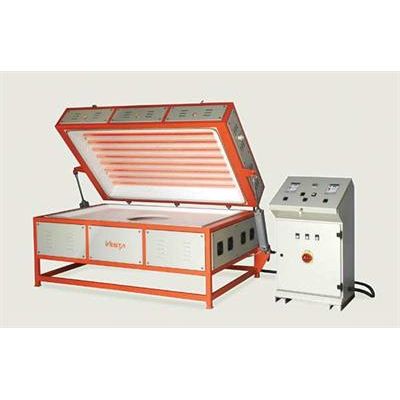

Vesta - Model GWB / PRO Series -Washbasin Kilns for Studios
Max. Operating Temperature : 900°C. Temperature Control : Dual Zone. Switching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional). Thermocouple : Type K (NiCr-Ni) inserted in ceramic tube. Thermal Insulation : High density ceramic fiber (multilayer).
Most popular related searches
digital temperature controller
pneumatic cylinder
ceramic fiber
damper
type k thermocouple
dual temperature controller
ceramic density
thermocouple
natural radiation
temperature switch
- Heating Surface : Top and bottom
- Heating Elements : Resistance wire wound inside quartz tubes to ensure uniform radiation
- Cooling : Natural cooling through ventilation holes/ programmable motor driven dampers (optional)
- Lid Opening : Manual by the help of pressurized gas dampers (small Kilns)
- By pneumatic cylinders (large kilns)
- Frame Construction : Welded steel profiles
- Casing : Folded sheet metal
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) - Other colors on request.
- Connection : Three Phase + Neutral + Earth
