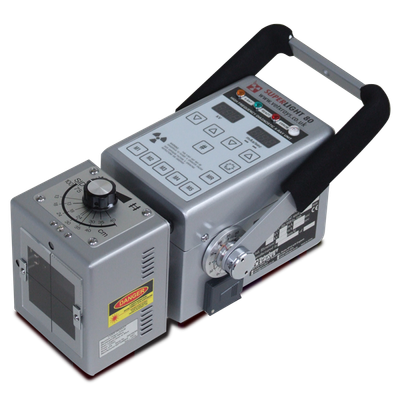

Veterinary X-Rays - Model Superlight 80 -Portable X-Ray Generator
The Superlight 80 is a portable x-ray generator designed to provide a lightweight yet powerful solution for veterinary radiography. With the ability to operate at 50 to 80 kV in 2 kV increments and an effective current of 20mA to 50mA, this generator offers substantial flexibility and precision in imaging. It operates on a single-phase AC 50/60Hz 240v source, making it compatible with standard power systems. The built-in timer controls exposure from 0.01 seconds to 2.00 seconds, ensuring optimal imaging conditions. The compact form factor, with dimensions of 120 mm width, 300 mm length, and 150 mm height, combined with its 6.0 kg weight, enhances portability without sacrificing performance. Equipped with a 0.8 mm x 0.8 mm focal spot and 2.7mm Al equivalent filtration, the Superlight 80 balances precision and efficiency in a cost-effective package. The innovation behind this device is rooted in addressing the specific needs of veterinary practices.Most popular related searches
- KV range from 50 to 80 in 2kV steps
- High frequency 20mA (conventional 37.5mA) throughout the whole kV range
- DR ready. Plug your DR system in and go, no remote synchronisation box needed
- Wipe clean touch panel displays
- Digital display of kV and time
- Built in dual laser, measuring beam centre and distance. Accurate positioning every time
- Digital timer with 0.01s increments
- Ultra high frequency 120kHz inverter
- Automatic line voltage compensation, ensuring output accuracy
- Switchable audible exposure warning
- Powered by 13 amp domestic supply
- Total weight of 6kg
- Suitable for use with any of our range of stands and mountings
- 5 year extended warranty
- kV (2kV steps) : mA
- 50 to 80 kV : 20mA (effective 50mA)
- Source : Single phase AC 50/60Hz 240v
- Timer : 0.01s to 2.00 s
- Focal spot : 0.8mm x 0.8mm
- Filtration : 2.7mm Al equivalent
- Dimensions : 120(w) x 300(l) x 150 (h) mm
- Total weight : 6.0 kg
