Lighthouse Worldwide Solutions (LWS)

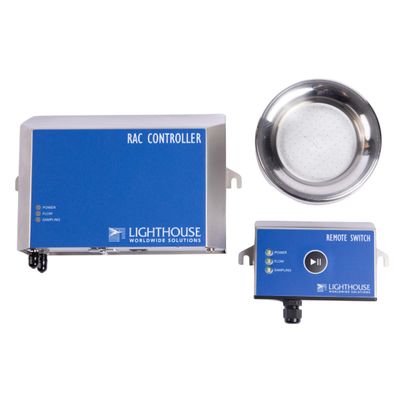

Lighthouse - Model ActiveCountR -Viable Impactor System
Lighthouse designed the ActiveCountR system to meet the industry need for continuous trouble-free operation and flexible running parameters.The ActiveCountR utilizes an external vacuum source which can be an independent pump system, house vacuum or a shared vacuum source with non-viable particle counters. ActiveCountR can be operated via the local start/stop button or remotely via a software interface.
The sampling head is designed to be remote mounted within the critical sampling environment. The sampling head comes in a bottom mount and side mount design.
The remote sampling switch allows the operator to start, stop or pause sampling without having to intervene into the critical area being sampled. Sampling can also be controlled via software.
Designed for ISO EN17141 and EU GMP Annex 1:2022 Compliance.
Most popular related searches
non-viable particle counting
stainless steel enclosure
continuous microbiology monitoring
non-viable particle
viable particle counting
microbiology monitoring
viable particle
weight indicator
microbiology sampling
pump system
- Designed for EN17141:2020 Compliance
- 1 CFM (28.3 LPM) sample rate
- Utilizes an external vacuum system
- Local start/stop control or remote control via software
- Stainless steel enclosure
- Single start/stop push button
- Local LED status indicators
- Third-party validated sampling head
- 2 year warranty
Features / Models: ActiveCountR
- Flow Rate: 1 CFM
- Sampling Methodology: Impaction Principle
- Impactor Head: 316L SS with 113 holes, 19m/s, d50: 1.2µm
- Communication Protocol: RS-485 Modbus
- LED Indicators: Power, Flow, Sampling
- User Interface: Manual Start/Stop; Control Software (LMS Express)
- Communication Connectors: Switch: Liquid-tite cord grip; Controller: RJ45
- Enclosure: Stainless Steel
- Sample Outlet Connection: 1/4 “ Barb
- Vacuum Requirements: 16 in HG
- Power: 24 VDC

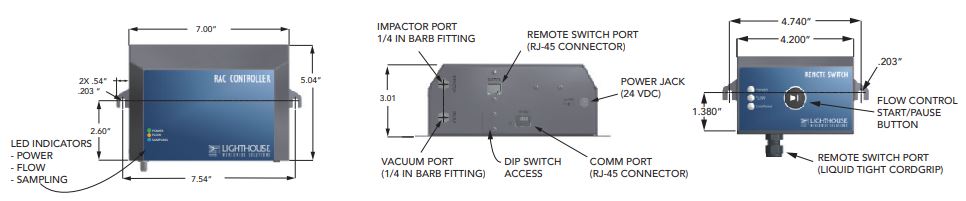

- Dimensions Impactor: Diameter: 4.41”(11.20 cm), height 2.1“ (5.33 cm)
- Dimensions Switch: 5.8” (w) x 2.7 (h) x 1.0” (d) [15 x 6.9 x 2.5 cm]
- Dimensions Controller: W 8.0“ (w) x 5.0 (h) (20.32 cm), H 5.0” (12.7 cm), D 3.0“ (7.62 cm)
- Weight Impactor: Impactor: 4.4 lbs (2.00 kg)
- Weight Switch: Switch 0.59 lbs (0.27 kg)
- Weight Controller: Controller: 2.6 lbs (1.18 kg)
- Operating: Operating 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing
- Storage: Storage 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing
Includes: Power supply, sample tubing
Optional: Printed installation guide; LMS Express
