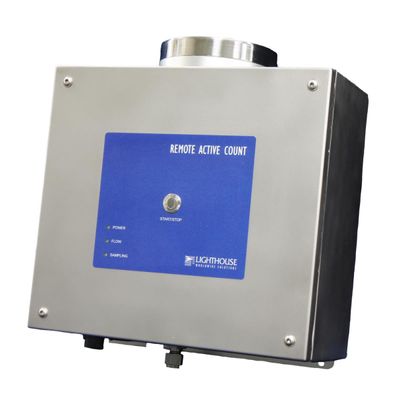

Lighthouse - Model ActiveCountRp -Viable Impactor System
Designed to align with ISO EN17141 and EU GMP Annex 1:2022 standards, the ActiveCountRp is an exemplary solution for industries seeking continuous, trouble-free operation with adaptable parameters for viable sampling. This system offers operational versatility, allowing users to initiate sampling, either through a local start/stop button or remotely via a software interface.Its innovative design includes a choice of either a top mount or remote mount 316L stainless steel impactor, ensuring superior sampling flexibility for a variety of viable sampling requirements.
Most popular related searches
stainless steel enclosure
continuous microbiology monitoring
stainless steel impactor
flow control system
microbiology monitoring
compression fitting
microbiology sampling
HEPA filter
environmental monitoring
flow control
- Designed for EN17141:2020 Compliance
- 1 CFM (28.3 LPM) sample rate
- Integrated vacuum pump
- HEPA filtered exhaust
- Stainless steel enclosure
- Closed-loop feedback flow control system
- Single start/stop push button
- Local LED status indicators
- Remote or direct mount sampling head options
- Third-party validated sampling head
- 2-year warranty
With its compact size, the Remote ActiveCount system is designed for straightforward "plug-and-play" integration, making it a convenient and user-friendly component of Lighthouse Express Real-Time monitoring systems. LWS further enhances the system`s value by providing extensive validation support for all its pharmaceutical products, including the Remote ActiveCount system, to ensure optimal performance and reliability.
- Flow rate: 1 CFM
- Sampling Methodology: Impaction Principle.
- Communication Protocol: RS-485 or 232 Modbus.
- LED Indicators: Power, Flow, Sampling.
- User Interface: Manual Start/Stop; Control Software (LMS Express)
- Communication Connectors: Sealed Industrial RJ45 Connector
- Enclosure: Stainless Steel
- Sample Outlet Connection: 3/8 “ Compression Fitting
- Vacuum Requirements: Internal
- Power: 100-240 VAC, 50-60 Hz, external AC/DC adapter

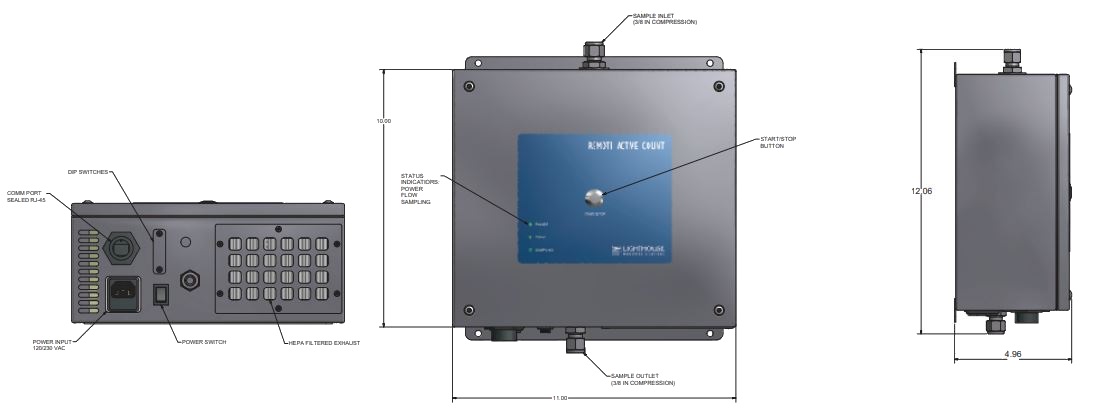

- Dimensions: 11.0” (w) x 11.0(h) x 5.0” (d) [27.94 x 27.94 x 12.7 cm]
- Weight Impactor: 15.1 lbs (6.8 kg)
- Operating: Operating 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing
- Storage: Storage 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing
Includes: Power supply, sample tubing
Optional: Printed installation guide; LMS Express
