ViaSite - Model Smiley -Speed Display for Driver Feedback

SHARE

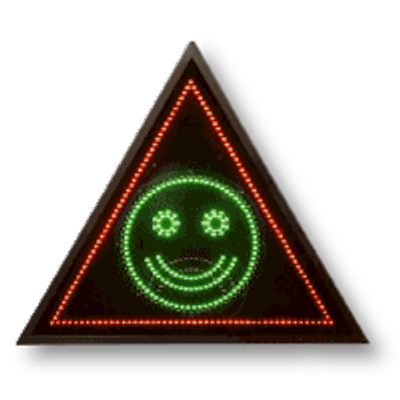

The ViaSite Smiley Face Speed Display is designed to improve driver awareness and compliance with speed limits through the use of visual feedback. Unlike traditional numeric displays, the Smiley Face Speed Display uses instantly recognizable image feedback to capture driver attention. The display leverages instant feedback by verifying and comparing vehicle speed to local speed limits ten times per second, allowing real-time response to speed changes. If a driver exceeds the speed limit, a red sad face is displayed; if the driver slows down to below the limit while approaching the sign, a green smiley face is shown, rewarding compliant behavior. The display features a triangular warning sign shape for enhanced visibility. The device includes programmable functions for setting speed limits, and filtering out non-relevant traffic, like bicycles and pedestrians. It can collect speed, date, and time data from up to 100,000 instances, with transferability via USB, serial connections, or an optional GSM/GPRS module. Furthermore, software upgrades allow extension and enhancement of features, ensuring long-term functionality.
Most popular related searches
well control
well controller software
ground penetrating radar data
ground penetrating radar software

Images work better than numbers

Images are more effective than numbers to reduce speeding. Often drivers are not aware about speed limits in the region, even that it might be familiar area. Numeric information is not relevant enough and many displays do not indicate clearly enough when speed limit is exceeded. In field tests it was clear that image caught driver’s attention better than conventional number display. Surprising was that many drivers maintained speed while driving pass the numeric speed display, but slowed down while approaching “Smiley Face” display.



Instant Feedback function

Instant feedback is the major contributor for this. Speed is verified and compared to speed limit 10 times in second. This allows display to react any speed changes while driver is still approaching display. Display turns bright red and shows sad face if limit is exceeded. If driver reduces speed under the limit while still approaching display, it will show immediately green smiley face display and this way awards driver for reducing speed. This type of approach enforces correct behavior more effectively than conventional speed display. Display was also designed as warning sign / triangle shape, which enhances visibility and noticeability.

Versatile programmable functions

Speed limit, minimum and maximum speeds are set by using control panel equipped with back light LCD screen and five control buttons. Screen and buttons are located behind separate and lockable hatch. USB and serial connections for data transfer are also located behind this same hatch. With maximum speed setting it is possible to filter out extreme speed limit violations. With minimum speed setting it is possible to filter out light traffic like push bikes and pedestrians.

Integrated speed data collection module gathers speed, date and time information from up to 100 000 samples. Module gathers information not only from approaching targets, but resending targets as well. This information can be easily transferred over serial / USB connection directly from display. Optional GSM/GPRS –data transfer allows wireless data transfer from display as well. Control module software is upgradable for new and improved functions. Simple software upgrade enables long life time for this product.
