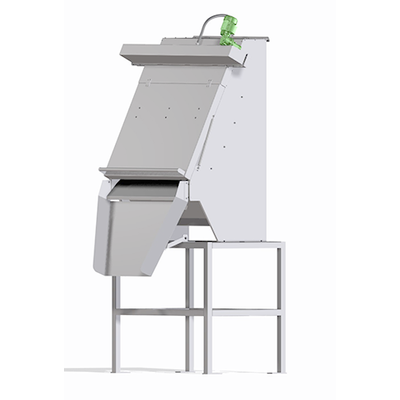

Colubris - Vibrating Curved Screen
Removes particles that could damage or block downstream equipment. Screenings spend a long time on the relatively flat bottom part of the screen plate, allowing moisture to seep from the screenings.
Less sensitive for blockage
Wedge is widest on the inside, so slots block more difficult.
Effective mesh
Mesh is smaller than actual slot width due to curvature of the curved screen combined with the momentum of the coarse solids.
Hygienic
The screening is guided by a chute during the fall into the deposit.
Low energy consumption
Vibrating action provided by 2 pneumatic driven motors.
Automatic spray cleaning system
Cleans large surface area. The spray arm is equipped with multiple high-pressure spray nozzles which is reliable and safe.
Support structure
Creates enough height to place a container below the screen.
Improved hygiene & prevents nuisance
By adding a hinged cover it opens effortlessly as it includes a gas cylinder assisted swing-up opening.
