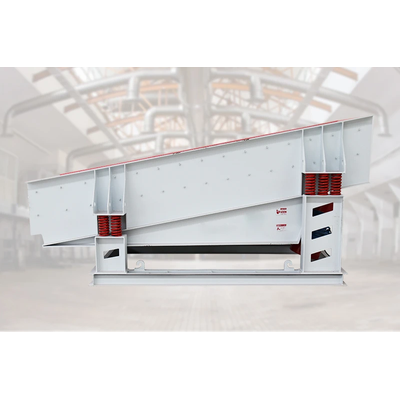

Xingaonai - Model ZG Series -Vibrating Feeder
ZG series vibrating feeder is used in the production process to uniformly, continuously or quantitatively transport bulk, granular and powdery materials from the storage bin or hopper to the receiving equipment. When production needs, the materials can be processed Initial screening. In the stone crushing production line, it can evenly and continuously feed the crushing machinery, and can also carry out primary screening of the stone, and the powdery and small materials are automatically discharged from the gap.
Multipurpose machine
The liner is detachable, and the smaller materials fall through the gap and directly enter the next process, thus playing a pre-screening effect. It is used for both feeding and screening.
Stepless adjustment
Steplessly adjust the relative angle of the eccentric block, change the size of the exciting force, conveniently control the feeding amount, and produce normally in rainy days.
Simple structure
The operation is convenient and the labor cost is effectively reduced.
Customized

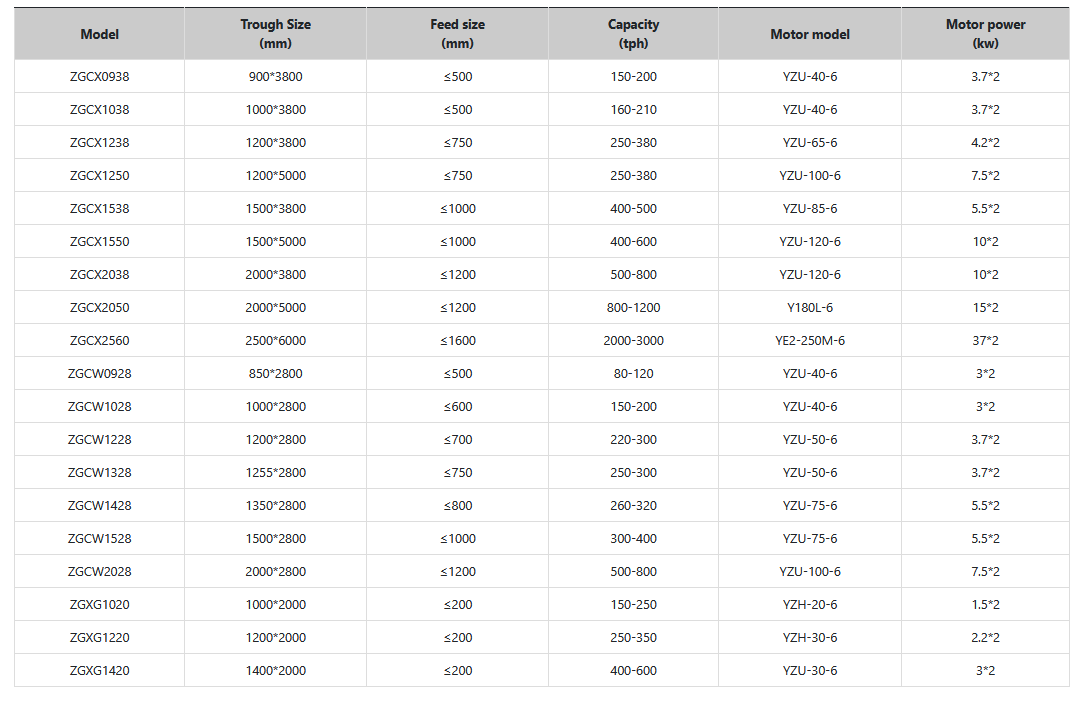

Models can be customized as required.
The ZG Series Vibrating Feeder operates via a dual-motor excitation system or single-motor eccentric drive, generating linear or elliptical vibration to evenly convey bulk materials. Its core mechanism involves a spring-supported trough and adjustable vibration amplitude (2-6mm), controlled by counterweights and frequency modulators. Materials are stratified and advanced along the trough surface through rhythmic up-down and forward motions, ensuring consistent flow rates (up to 1,200 t/h) and minimal blockage. Key features include dust-tight enclosures, self-lubricating bearings, and low-noise operation (≤75dB). Applications span mining, metallurgy, and bulk material handling, where precise metering and continuous feeding are critical.
