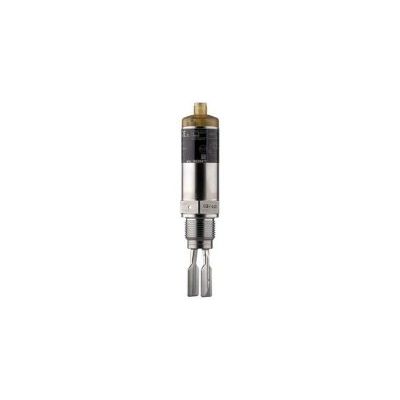

VEGASWING - Model 51 -Vibrating Level Switch for Detecting Liquid Process
The VEGASWING 51 is an economical vibrating level switch for detecting liquid process materials.
Most popular related searches
For use in liquids.
- Setup without adjustment
- Product-independent switching point
- Wear and maintenance-free
- Small mounting dimensions
- Key Specifications
- -40° to 302°F (-40° to 150°C) operating temperature
- 3/4" NPT process connection
- Solid State relay or PNP transistor output
- M12 or other plug type electrical connections
VEGASWING is a level sensor with tuning fork for level detection. It is designed for industrial use in all areas of process technology, preferably in liquids. The tuning fork is energized piezoelectrically and vibrates at its mechanical resonance frequency of approximately 1200 Hz. If the vibrating element is submerged in the product, the vibrating frequency changes. This change is detected by a second piezoelectric crystal and converted into a switching command.
