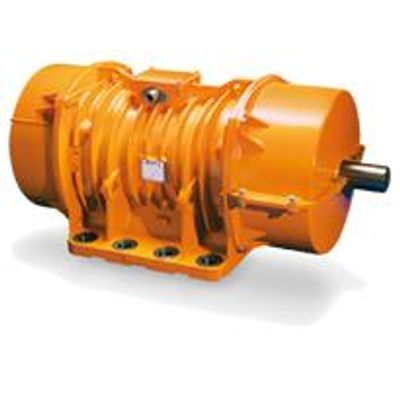

Dartek Italvibras - Model MVSI Series -Vibrating Motors for Industrial Machinery

SHARE
The MVSI Series Vibrating Motors by Italvibras serve as a key component for manufacturers in diverse industrial sectors, particularly those using vibrating machinery. These motors cover an extensive array of configurations with centrifugal force values reaching up to 30500 Kgf (300 kN), catering to varying demands of industrial applications. Designed for optimal performance, they adhere strictly to the latest international IEC and EN standards, including those meant for use in potentially explosive dust atmospheres commonly found in zones 21 and 22. Their specifications encompass three-phase voltage ranging from 24V to 690V (at 50Hz or 60Hz), and single-phase from 100-130V at 60Hz and 200-240V at 50Hz, along with multiple polarities that include 2, 4, 6, and 8 as standard, while offers for 10 and 12 poles are available. The electric motor features class F (155°C) with an option for class H (180°C) insulation on demand, alongside a robust isolating mechanism ensuring reliable operations.
Most popular related searches
EN standard
glass recycling
dust explosibility
dust explosion
explosive atmosphere
centrifuge
explosion modeling

MVSI series represent the product line constituting a reference point for all vibrating machine manufacturers and installations, which work in multiple industrial sectors.

It is composed of the widest range in the market, with spinning forces values up to 30500 Kgf (300kN).

It is characterized by the continuous technological evolution within the framework of a continuous improvement of its features.

The MVSI series has been designed to guarantee elevated features in all types of use and atmosphere conditions and complies with the most recent international IEC and EN standards on its use in potentially explosive dust atmospheres.

Specially, MVSI model can be used in zones 21 and 22

Power:
24V to 690V, 50Hz or 60hz three-phase voltage or 100-130V to 60Hz and 200-240V to 50Hz single-phase voltage

Polarity:
2, 4, 6 and 8 standard , 10 and 12 special poles upon request.

Operation:
Continuous service (S1) at the maximum centrifugal force and the electrical power declared.

Centrifugal force:
Range up to 30500 Kgf. (300 kN)

Isolating class:
F (155°C) class, H (180°C) class upon request.

Electric motor:
Three-phase and single-phase asynchronous type. Isolated winding by means of its vacuum encapsulated up to size 35; by means of a “drop to drop” system with class H resin for bigger sizes.
