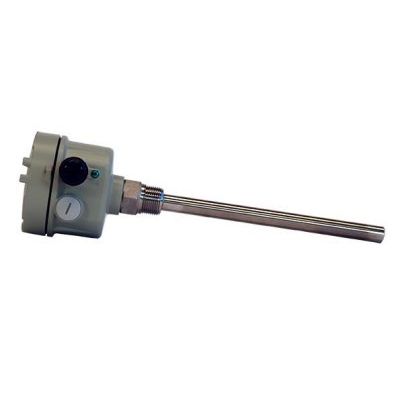

APG - Model Series VBL -Vibrating Rod Level Switch
The VBL vibrating level sensor works well with solids of many types in medium and large sized hoppers. The VBL allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids.
Versatile Solid Level Sensing
The VBL vibrating level switch works well with solids of many types and for silos and bins or many shapes and sizes.
Mounting Options
The VBL vibrating level switch can be mounted vertically or at 20º above horizontal.
Sensitivity Adjustments
The VBL vibrating level sensor allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids. Sensitivity can be set on a dial from Low (large particles) to High (small particles).
With several mounting options and field adjustable sensitivity settings, the VBL is perfect for a variety of solid level detection applications.
- Application:Solids
- Type:Vibrating Rod
- Performance
- Operation : 1 SPDT NO, NC switch
- Programming
- Sensitivity Adjustments
- High – Small particle volume/density (e.g. rice bran)
- Low – Large particle volume/density (e.g. plastics)
- Fail Safe Modes
- High or Low
- Electrical
- Supply Voltage : 20 - 250 VAC/VDC, 50/60 Hz
- Output Contact Rating : 5A / 250 VAC
- Power Consumption : ≤ 15 VA
- Physical
- Housing : Aluminum Die Cast
- Vibration Probe : 304 / 316 SS
- Length: 10.83" (275 mm)
- Approvals : N/A
- Connectivity
- Wiring : Terminal Block (cable not included)
- Environmental
- Operating Temperature
- Housing: -40º - 140ºF (-40º - 60ºC)
- Rod: -40º - 176ºF (-40º - 80ºC)
- Enclosure Protection
- IP65
- NEMA 4
