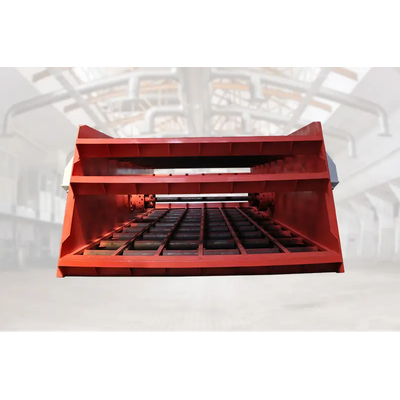

Xingaonai - Model YKZ Series -Vibrating Screen

FromXingaonai Heavy Industry Group Co., Ltd.

SHARE

Heavy-duty vibrating screens are widely used in sand and gravel aggregates, metal mines, coal, chemicals, electric power and other industries. It is suitable for various typical screening operations such as heavy-duty, medium-sized and fine screening with an input particle size of ≤200mm and a graded particle size of 3mm-70mm.

Most popular related searches

vibrating screen

non-ferrous metal

particle sizing

vibration control

screened limestone

tailings discharge

Application areas:YKZ series vibrating screen is a large excitation force vibrating screen, which is widely used in the screening process of sand and gravel aggregates, metal mines, coal, chemical industry and other fields.

Applicable materials:YKZ series vibrating screen, commonly known as medium vibrating screen, is suitable for screening materials such as limestone, granite, basalt, non-ferrous metal ores, etc.

Amplitude adjustable

The excitation force is adjusted by adjusting the number of counterweights, and the exciters are linked by universal joint couplings.

Rubber compound spring

The support adopts rubber composite spring for vibration reduction, stable operation and low noise.

High strength rivets

The side plate and the beam are connected by high-strength ring groove rivets, there is no stress relay, and distortion and deformation are effectively avoided.

Output controllable

It is convenient to replace the screen, and the screen can be customized.

The YKZ Series Vibrating Screen relies on a motor-driven exciter with synchronous eccentric blocks to generate directional exciting force, driving the screen box to vibrate. Materials are tossed across its 2–4 layer screen surface; undersized particles pass through to hoppers, while oversize ones discharge as tailings, with adjustable excitation for optimal grading accuracy.
