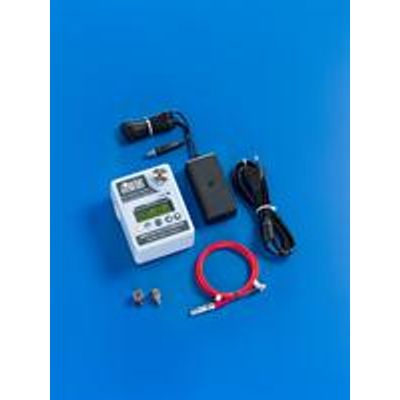

The calibrator HD2060 generates mechanical vibration amplitude controlled with
precision and frequency stabilized by a quartz. Coupling a transducer to the vibrating
base of the calibrator it is possible to check its sensitivity to acceleration,
velocity or displacement. The presence of a rechargeable internal battery, the
weight and the small dimensions as well as the low sensitivity to environmental
parameters make it easy to use the calibrator in the field. The calibrator is
equipped with a feedback system capable of accurately maintaining the amplitude
level set, regardless of the load associated with the mass of the transducer
(within the limits stated in the technical specifications). The mechanical vibrations generated by the calibrator are very stable over the time, with a typical drift of 1% per year.Two frequencies of solicitation: 15,915 Hz at 1 m/s2 and 0,1 g
159,155 Hz at 10 m/s2 and 1 g
Low distortion accelerations, independent from the mass of the transducer
