Schwingmetall Classic - Model Plus -Vibration Damping Rubber Metal Parts

Schwingmetall Classic Plus series products:

• Schwingmetall Combi mounts

For use with compression/shear mounts or railstrips; designed for inclined mounting arrangements with natural frequencies up to 3.7 Hz with excellent lateral stability.

• Schwingmetall Cone mounts

Universal assembly mounts for moderate loads. High radial stiffness with respect to the axial stiffness provides for good lateral stability. Plates can be added to provide buffer or fail safe mounts.

• Schwingmetall Railstrips

Particularly suitable for heavy and extra-heavy machines, equipment and foundations.

• SchwingmetallTorsion bushes

For smooth torque transmission. The elasticity of this bush allows for minor misalignments and angle errors at both ends of a shaft.

• Schwingmetall Rivet mounts

Ideal for quick fastening. Saves time when large numbers of the same mount need to be quickly fitted.

• Schwingmetall Heavy-duty mounts

Suitable for a wide range of uses. They are generally used so that the static load acts in Z-direction. Fail safe heavy-duty mounts are also available.

• Schwingmetall Instrument mounts

Suitable for loads from 5 kg to 220 kg. These mounts offer uniform stiffness in vertical and horizontal direction.

• Schwingmetall Bell mounts

Suitable for suspended loads (from 2 kg to 70 kg).

• Schwingmetall Shear mounts

Particularly suitable for low loads (from 2 kg to 25 kg per bearing point) at low natural frequencies.

• Schwingmetall Ring mounts

This four-part outer ring of the ring mount is pressed into an undersized hole. This gives a shaft mounted in the inner bush flexible support.

• Schwingmetall Torsion mounts

Suitable for fastening shaft ends flexibly to flat surfaces. This mount allows for axial, radial, torsional and cardanic movements, each with a specific spring stiffness.

• Schwingmetall Flange mounts

A sturdy and simple solution for loads from 20 kg to 240 kg. The provision of additional plates (not included) at the top and bottom make this product fail safe.

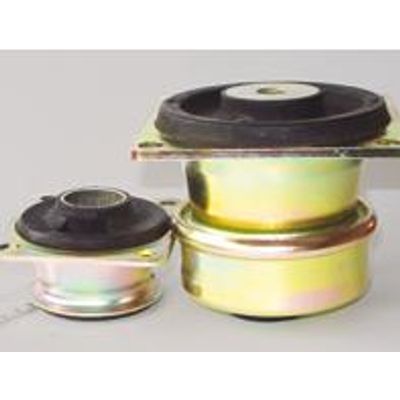

• Schwingmetall Dome mounts

Resolve the problem of height regulated, attachment-free mounting of machines and equipment. They are specially designed for virtually identical spring values in vertical and horizontal direction. The height regulation system of these mounts makes it possible to adjust the height of machines and equipment.
