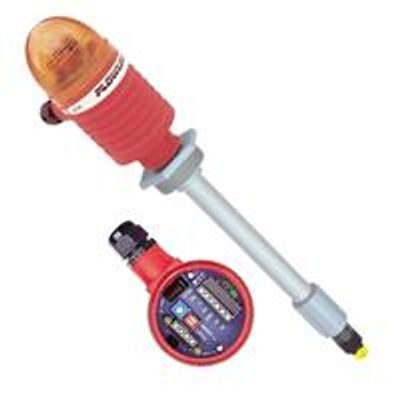

Switch-Pak - Vibration Level switch with Compact Level Controller
Level Switch System with Compact Relay Controller. General purpose switch package providing a complete solution for high level spill prevention with a fixed level switch point and 10A compact relay controller for pump or valve actuation. The Vibration Level switch has an optional flash alarm which visually alerts high level conditions that require immediate attention. The product is typically selected for pressurised and/or highly corrosive bulk storage, day tank and waste sump applications.
Most popular related searches
vibrating level switch
level switch
ultrasonic level switch
ultrasonic level
level sensor
valve actuator
corrosive liquid
spill prevention
level controller
pump control valve
Features of the Vibration Level switch include:
- PP or PVDF construction for use in challenging corrosive environments
- Fail-safe relay control of pumps and valves with 0-60 second time delay
- Offered in 3 sensing technologies for broad application coverage
- Compact flash alarm indicates high level condition to on-site personnel
- PP enclosure rated NEMA 4X with 300° conduit swivel base
- Length: 15cm to 3m
- Switch points: 1 (set by factory)
- Contact type: SPDT relay
- Process mount: 2″ G (2″ NPT)
- Suitable for corrosive liquids
- NEMA 4X rated enclosure
- Optional strobe alarm
- Mount on the top wall of the tank
- Select length for custom set points
- Relay output interfaces directly with valve, buzzer, alarm etc
- Ideal for high level overflow protection or low level pump protection
