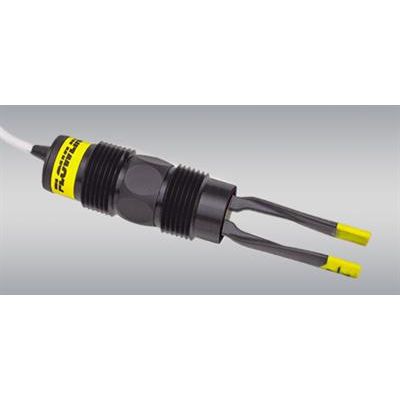

Switch-Tek - Model LZ12 - Vibration Liquid Level Switch
APPLICATION: The general purpose vibration liquid level switch provides high or low liquid level detection of dirty liquids or those with light to medium coating or scaling characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and copper sulfate. For optimum performance, the sensor automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible PP-Ryton® level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.
-
Most popular related searches
Features
- Automatic coating adjustment optimizes sensor performance
- Submersible Ryton® sensor with polypropylene cable for corrosive liquids
- Maintenance alarm proactively alerts user if sensor cleaning is required
- 60VA SPST relay selectable NO or NC via power supply wiring polarity
- Compatible with Smart Trak and Switch-Pak installation fittings
Specifications
- Orientation: Universal
- Accuracy: ± 1mm in water
- Repeatibility: ± 0.5mm in water
- Supply voltage: 12-30 VDC
- Consumption: 25 mA maximum
- Contact type: (1) SPST relay
- Contact rating: 60 VA, 1A maximum
- Contact output: Selectable NO / NC
- Maint. alarm: NPN transistor, 10 mA maximum
- Process temp.: F: -40° to 176°, C: -40° to 80°
- Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
- Sensor rating: NEMA 6 (IP68)
- Sensor material: Ryton® (glass filled)
- Grommet mat.: Viton®
- Cable jack. mat.: Polypropylene
- Cable type: 5-conductor, shielded, #24 AWG
- Cable length: 10’ (3m)
- Process mount: 3/4” NPT (3/4” G)
- Mount. gasket: Viton®
- Classification: General purpose
- Compliance: CE
