Monarch Instrument - Model EXAMINER 1000 -Vibration Meter Kit

The EXAMINER 1000 Vibration Meter Kit centers around the EXAMINER 1000, a meter designed for ease of use in condition-based maintenance programs. It is the ideal tool to begin a predictive maintenance program or to add to an existing world-class maintenance program with FFT data collectors and analysis software. This product is available with NIST Traceable Certificate.

The EXAMINER 1000 measures vibration in:

•  Acceleration
•  Velocity
•  Acceleration Enveloping

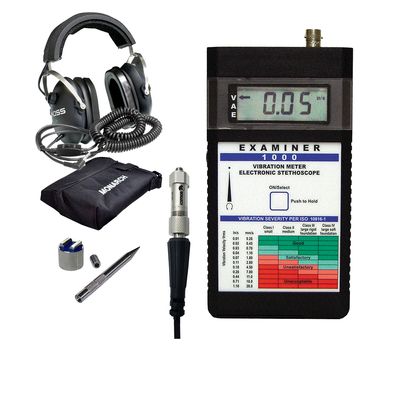

• Kit includes EXAMINER 1000 Vibration Meter and electronic stethoscope, batteries, accelerometer and coiled cable, magnetic base, stinger probe, stereo headphones, and carry case
• One-button operation – no training required for use but interactive vibration training is available
• Front Panel Severity Chart on the front
• Multiparameter Readings – power to trend defects and eliminate unplanned failures
• Stethoscope – hear what you see in the digital display! The proven troubleshooting technique of listening!
• Reliable, accurate, and affordable

Vibration is considered the best operating parameter to judge dynamic conditions such as:

• Balance
• Bearing Defects
• Lubrication

The EXAMINER 1000 is a handheld, battery-powered overall vibration meter and electronic stethoscope. It is the perfect tool for trending overall vibration readings in process equipment such as:

•  Rolling Element Bearing
•  Motors AC/DC
•  Pumps
•  Gearboxes
•  Compressors
•  Fans

• Specification : Specification value
• Vibration Sensor : Piezoelectric accelerometer 100 mV/g with magnetic base, probe, and 5 ft. cable to BNC
• Display : LCD 3.5 digits – Indicators: Measurement, Hold, Low Battery, Units of Measure
• Measurement Range : Acceleration: 0.01-19.99 g (RMS) Velocity: 0.01-19.99 in/sec, 0.1-199.9 mm/sec (RMS)Envelope: 0.01-19.99 gE (peak)
• Frequency Range : Overall: 10 Hz – 10 kHz
• Envelope: 0.5 kHz – 10 kHz
• Output : Sensor excitation: 18 Vdc @ 2 mA (BNC)Audio output: 3.5 mm mini plug; 250 mW into 8 ohms, 150 mW into 32 ohms; adjustable volume control with off position
• Power : Two (2) AA cells
• Operating Time : 20 hours continuous without headphones
• Weight : Complete kit: 2.85 lbs. [130 kg]
• Dimensions : 6.3 x 3.3 x 1.25 in. / 152 x 83 x32 mm
• Operating Conditions : -14 °F to 122 °F / -10 °C to 50 °C
