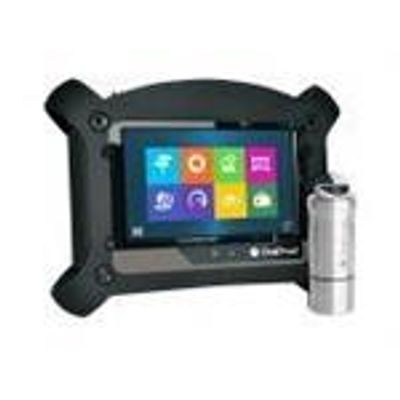

ONEPROD has packed its 25 years of experience with condition-based maintenance into FALCON. Highly experienced and novice users alike can now easily monitor machine vibrations and obtain highly pertinent results.
Main Feature
• Large Colored LCD screen 7”, high definition, touch screen, and readable even in bright sunlight.
• Standard compliance Suitable for industrial environment, Shock-proof, IP65 protection: Safety: IEC61010-1 EMC: directive 2004-108-CE
• Real time overlap rate: 0%, 50%, 75%
• USB, Wi-Fi, Ethernet, Internet connection to PC for storage
• Number of inputs: 4 channel + one Wireless Infrared temperature (Pyrometer) Range: 0 to 200°C + One wireless tachometer/stroboscope. Range: 30 to 15000 RPM
• Acquisition: 24-bits conversion with Anti-aliasing filter
• Battery autonomy 10 hours under intense use with auto test and calibration function and Programmable automatic standby mode and switch-off
• Data storage capacity 3.5 GB
• Falcon offroute function (included)
