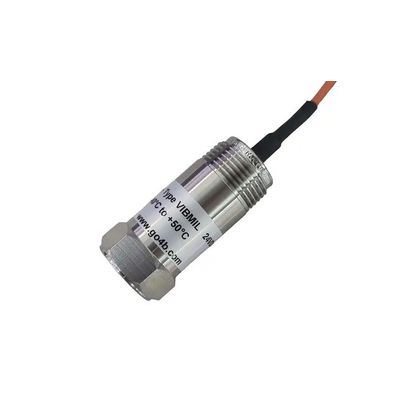

4B Group - Model VIBMIL - Milli-VIB & Milli-Con Series -Vibration & Surface Temperature Sensor
VIBMIL is a vibration sensor designed for continuous monitoring of vibration levels in industrial environments. It is current loop powered accelerometer and delivers accurate vibration RMS velocity using a 4-20 mA output. Built with a stainless-steel enclosure, including a 3/4” NPT thread for conduit connection. The VIBMIL can be supplied with optional inbuilt NTC or PT100 temperature sensors (Milli-Con version).
The VIBMIL is equipped with female 1/4”-28 UNF female mounting thread, allowing the use of a screw, stud, or mounting stud to secure the sensor to the desired application.
The sensor is supplied with a 1/4”-28 UNF set screw as standard. Optional converters to M8 and M6 male threads are available.
To achieve maximum sensitivity, mount the sensor vertically along the Y-axis of the machinery.
To ensure accurate readings and proper functioning of the VIBMIL, securely fix it to a level surface during installation.
Implement the 2 wire, loop powered accelerometer into the desired control system and measure the linearised output from 4 – 20mA proportional to the sensors measuring range.
- Robust, compact, IP66 Stainless Steel enclosure
- Monitors RMS velocity in mm/s
- Measuring range 0-25 mm/s standard, and 0-50 mm/s special request
- Can also monitor surface temperature with optional NTC or PT100 temperature sensor (Milli-Con version)
- 2 wire 4-20mA loop powered sensor
- 3/4” NPT conduit fitting
- 1/4” – 28 Female UNF mounting thread.
