Proactive - Model IRAvibro Series -Vibration Test Chambers

Suited to work with vertical and horizontal vibration systems, the climatic and temperature test chambers have been optimized particularly for operation with TIRA vibration test systems and integration into TIRA complete systems.

Incorporated in system solutions, the test chamber and shaker can be operated through a common test software (TEC). The base models of series are available in useful space sizes of 250-12001 and in two temperature ranges (-40°C, -70°C...+180°C).`

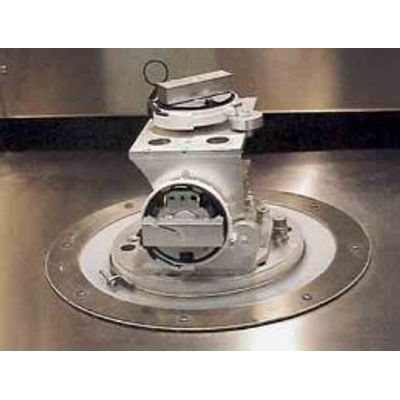

Sliding or fixed floors feature the interface port to connect the vibration test system to the test chamber. Either a fixed or two flexible test chamber- floors are used as a function of vibration test to be completed. The diaphragms are made adjustably to the mounting surface to seal-off the mechanical interface between test chamber- floor and the shaker. As compared to silicone, the used plastic fiber material has proven its long-term stability and thermal resistance. Hydraulic lifting or rail systems are used to sustain horizontal and vertical movements of vibration test chamber and to adjust the chamber to position of use and/or vibration shaker. Blind floors or cover plugs can be installed for climatic and temperature tests irrespectively of the vibration test system. The series can be matched individually with any application and extended by numerous accessories. (`Other sizes and designs on request, as from 601)
