Sentek - Model M4040A-PA 140 -Vibration Test System

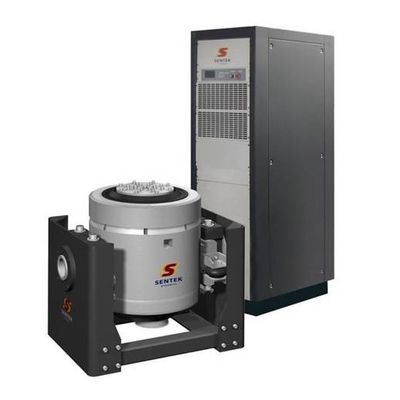

The Vibration Test System model M4040A – PA 140 is a air-cooled system ideally suited to testing small-sized electronic parts, connectors, hand-held units and small mechanical assemblies. The system meets various testing requirements: automotive, aviation, military, medical and electronic manufacturing industries, among the others. The system is composed by a electro-dynamic exciter known as shaker + power amplifier + air cooling unit.
Most popular related searches
vibration testing system
vibration test
air cooling system
environmental test chamber
electrodynamic shaker
test chamber
cooling system
environmental testing
air amplifier
environmental chamber
- Continuous displacement 51 mm (2.0 in)
- Useable frequency range 5 – 2400 Hz
- Max static payload 500 kg (1100 lb)
- Air-cooled amplifier efficiency > 90%
- Rugged isolated trunnion
We offers a wide selection of options and accessories for unique applications and complete turn-key systems.
- Custom armature and slip table insert patterns and threads available
- Air-isolation feet, pads and mounts to eliminate need for seismic floor
- Thermal barrier for use with environmental test chambers
- Remote control panel for remote operation
