Vibromera - Model Balanset-1A OEM -Dynamic Balancer

The Balanset-1A device offers a comprehensive range of functionalities for rotor balancing and vibration analysis:

Vibrometer Mode:

• Tachometer: Accurately measures rotational speed (RPM).
• Phase: Determines the vibration signal’s phase angle for precise analysis.
• 1x Vibration: Analyzes the fundamental frequency component.
• FFT Spectrum: Offers detailed frequency spectrum analysis of vibration signals.
• Overall Vibration: Monitors overall vibration levels.
• Measurement Log: Saves measurement data for further analysis.

Balancing Mode:

• Single Plane Balancing: Reduces vibration by balancing rotors in a single plane.
• Two Plane Balancing: Achieves dynamic balancing by balancing rotors in two planes.
• Polar Graph: Accurately places weights by visualizing imbalance in a polar graph.
• Restore Last Session: Resumes previous balancing sessions for convenience.
• Tolerance Calculator (ISO 1940): Computes acceptable balancing tolerances according to ISO 1940.
• Grinding Wheel Balancing: Utilizes 3 counterweights for balancing grinding wheels.

Charts:

• Overall Charts: Visual representation of overall vibration.
• 1x Charts: Displays vibration patterns of the fundamental frequency component.
• Harmonic Charts: Indicates the presence and impact of harmonic frequencies.
• Spectrum Charts: Graphical representation of the frequency spectrum for detailed analysis.

Additional Capabilities:

• Archive: Stores and retrieves past balancing sessions.
• Reports: Generates detailed reports of balancing outcomes.
• Re-balancing: Facilitates the repetition of the balancing process with saved data.
• Serial Production Balancing: Suitable for rotor balancing in serial production.

Balanset-1A also supports both Imperial and Metric systems, ensuring global compatibility and convenience.

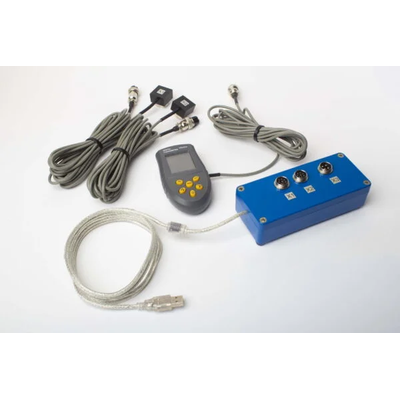

• 2x Vibration Sensors (Vibro Accelerometers, cable length 4m, optional 10m)
• 1x Optical Sensor (Laser Tachometer, distance: 50 to 500mm, cable length 4m, optional 10m)
• 1x USB Interface Module with Software for PC Connection
• Software Capabilities: Measures vibration, phase angle, and calculates the value and angle of the correction mass.

Details:

• Number of Measurement Channels:
  • Vibration: 2
  • Rotational Speed: 1
• Range of RMS Vibration Velocity Measurement, mm/s: 0 to 80
• Frequency Range of RMS Vibration Velocity Measurement, Hz: 5 (10) to 550 (1000)
• Limits of Permissible Absolute Measurement Error of RMS Vibration Velocity at Base Frequency (80 Hz) and in the Working Frequency Range, mm/s: ±(0.1 + 0.1*Vi), where Vi is the measured RMS vibration velocity
• Number of Correction Planes for Balancing: 1 or 2
• Range of Rotational Speed Measurement, RPM: 250 – 90000
• Range of Vibration Phase Shift Measurement, Degrees: 0 to 360
• Limits of Permissible Absolute Measurement Error of Vibration Phase Shift, Degrees: ±2
• Accuracy: 5% of Full Scale
• Phase Angle Measurement Accuracy, Degrees: ±1
• Power: 7-20VDC input, 3.3V operating voltage (powered via USB port of a laptop)
• Weight: 4 KG
