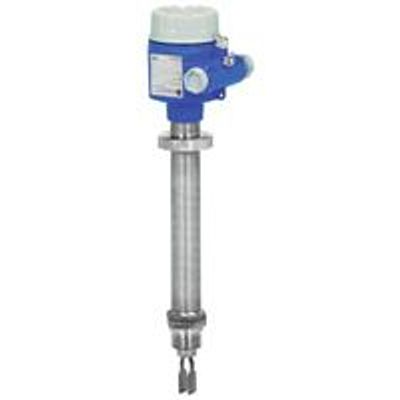

Liquiphant - Model FTL70 -Vibronic Point Level Detection
Point level switch for liquids in high-temperature applications. Liquiphant FT70 is a point level switch for use in hazardous areas with all international certificates. FTL70 is especially designed for applications with high process temperatures up to 280°C and can be used for Safety Instrumented Systems up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
-
Use in safety systems requiring functional safety to SIL2 in accordance with
IEC 61508/IEC 61511-1 -
With welded gas tight feedthrough maximum safety in the event of damaged sensor
-
Wide variety of electronics, e.g. NAMUR, relay, thyristor, PFM signal output: the right connection for every process control system
-
Large number of process connections to choose from: universal usage
-
No calibration: quick, low-cost start-up
-
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function -
FDA approved materials (PFA Edlon)
Point level switch for all liquids.
-
Process connections: Threads and flanges
-
Temperature: -60 to +280°C (-76 to +540°F)
-
Pressure: -1 to +100bar (-14.5 to +1,450psi)
-
Sensor material: 316L, Alloy (PFA and Enamel on request)
-
International explosion protection certificates, overfill prevention WHG, marine approvals, SIL
-
Measuring principle
Vibration Liquids
-
Characteristic / Application
Modular housing concept
High process temperatures up to 280°C
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
compact, e.g. pipes
Dual Sealing / Second line of defense -
Specialities
Foamdetection
Detect a densitychange
second line of defense -
Supply / Communication
PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM -
Ambient temperature
-50 °C...+70 °C
(-58 °F...+158 °F) -
Process temperature
-60 °C...+280 °C
(-76 °F...+540 °F,
(300°C / 572 °F 50h, cumulated -
Process pressure absolute / max. overpressure limit
Vacuum...100 bar
(Vacuum...1450 psi) -
Main wetted parts
316L / Alloy
PFA and Enamel on request -
Process connection
Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DIN DN25...DN100,
ASME 1"...4",
JIS 25A...100A -
Sensor length
65mm (2.56")
-
Communication
PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM -
Certificates / Approvals
ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
-
Safety approvals
Overfill prevention WHG
SIL -
Design approvals
EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3
AD2000 -
Marine approval
GL/ ABS
-
Options
Heavy duty stainless steel housing mainly for the oil and gas industry
-
Components
FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR
