Vibrotechnik - Model S 40/70T - Laboratory Test Sieve
Test sieves correspond to the accuracy of mesh sizes and perforated plate holes to international standards ISO 3310-1, ISO 3310-2 and provide high reproducibility of sieving.
The sieves can be equipped with stainless steel mesh (cell sizes from 20 μm to 10 mm), or with perforated plate with round and square holes (from 1 mm to 125 mm), corresponding to ISO 3310.
See more: http://vibrotechnik.com/catalog/sieving-equipment/laboratory-test-sieves/sieve-s-40-70t-diameter-400-mm-height-70-mm/
-
Most popular related searches

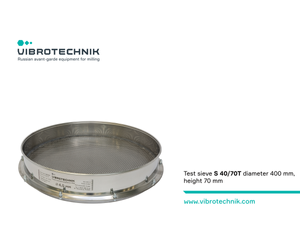

Test sieve S 40/70T diameter 400 mm, height 70 mm
CHARACTERISTICS
- Inner frame diameter 400 mm
- Overall dimensions: Ø440 mm, Height 85 mm
- Mesh size 0,2 – 10,0 mm
- Size of apertures in perforated plate:
round holes — 1,0 — 125,0 mm
square holes — 4,0 – 125,0 mm
- Maximum weight of sieve with mesh 3,5 kg
- Maximum sample weight for sieve with mesh 0,6 kg
- Maximum sample weight for sieve with perforated plate 2,0 kg
