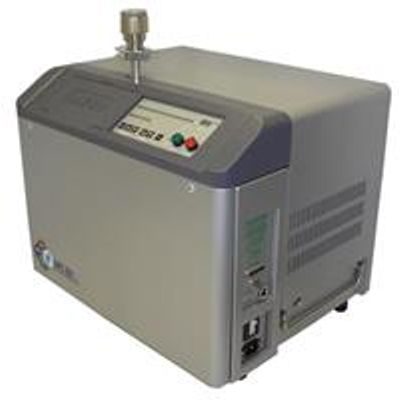

VIC - Model MD-490M -Turnkey Vacuum Mass Spectrometer System
The MD-490M is a turnkey vacuum mass spectrometer system characterized by ease of maintenance and adaptability to system use. The instrument uses the most sensitive and accurate method of leak detection: the helium mass spectrometer. It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment..
Most popular related searches
mass spectrometry system
mass spectrometry
spectrometer system
vacuum leak detection
helium mass spectrometry
helium leak detection system
leak detection system
leak detection
tracer gas leak detection system
gas leak
-
AUTOMOTIVE
- Exhaust System
- Cooling Circuit
- Engine
- Battery
- Oil Pan
-
AIR CONDITIONING
- Condenser Coils
- Evaporator Coils
- Compressor Seals
- Refrigerant Tubing
- Valve and Joint
-
MEDICAL
- IV Bag
- Implantable Device
- Syringe and Vial
- Medical Pouch
- Packaging
-
NUCLEAR
- Fuel Rod
- Coolant System
- Containment Vessel
- Storage Container
- Glove Box
-
AEROSPACE
- Fuel System
- Hydraulic System
- Oxygen System
- Pressurized Cabin
- Cooling System
Performance
- Sensitivity: System Mode, minimum detectable helium leak rate 2.5 x 10-9 atm-cc/sec.
Sniffer Mode, minimum detectable helium leak rate 2.5 x 10-7 atm- cc/sec. - Response Time: < 1.0 second system mode testing, < 1.5 seconds sniffer mode testing.
- Startup Time: One button automatic operation.
Cold Start-Up, less than 3 minutes.
Standby Start-Up, less than 1 minute
Display Leak Rate Range
- System Mode Testing: 0-10 Volts output to main PLC. Leak rate configured to systems calibrated gas leak.
- Interface Signals: Auto-Zero, Ready, Leak Rate and Fault Signals.
- Sniffer Mode Testing: 10-3 to 10-7 atm-cc/sec He direct-reading.
Main Features
- Cold Start-Up, less than 3 minutes
- Standby Start-Up, less than 1 minute
- One button automatic operation
- Hard vacuum leak detection system
- Modular assembly for custom arrangement
- PLC controlled
- Turn-key operation
- Front panel key lock-out
- Turbo speed adjustable from 600 to 1500HZ
- Five year warranty on major components
- Includes an internal fast clean-up sniffer manifold
- Allows rapid switching between sniff and vacuum testing modes
- Auto peak cycle
Options
- 24Vdc control
- 110Vdc control
- Atmospheric sniffer module
- Side mount configuration
- Bottom mount configuration
- Electrical Converter Box
