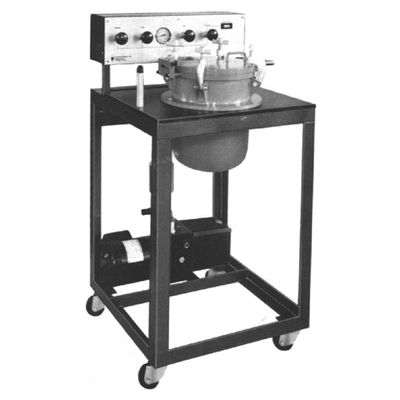

VIC - Model PBS-1 -Single Chamber Bombing Station

• Recovery efficiencies up to 98%
• Standalone programmable control packages
• Compressors utilizing an oil-less piston seal design to prevent oil contamination of the test object
• ASME coded and certified gas storage vessels
• Continuous on-line gas concentration monitoring and feedback ensures tracer gas percentage levels
• Real time diagnostics
• Automatic start-up operation
• Non-Lubricated cylinder and piston offer for ease of maintenance
• Cushioned valves designed for long life and quiet operation
• Piston rod seals of glass-filled self-lubricating Teflon, spring-loaded to compensate for lateral rod movement, wear and temperature variations
• Crankcases totally enclosed with an automatic breather valve to prevent entrance of dust or foreign matter

• Chamber Size: ASME coded 9” diameter by 10-1/2” deep
• Maximum Operating Pressure: 110 psig
• Pump: 3.2 CFM direct drive mechanical pump with coaxial trap
• Operation: Controls provide initial evacuation, venting after bombing and purging of the chamber with Nitrogen and other gases
• Valves: Manual, designed for long life
• Safety: 110 psig pressure relief valves
• Dimensions: 24” W x 23 1/2” D x 43” H
• Shipping Weight: 160 lbs
• Power Requirements: 120V, 60Hz; 220v/50Hz

The decision to invest in a Helium Recovery system is often determined by its financial feasibility.Here is a sample calculation to assist in determining if the system can be justified.

• Application: Helium leak test of A/C components
• Internal volume of product: 100 in3
• Production rate: 500/hr
• Tracer gas test pressure: 200 psig

Model Selection
A variety of models are available, each designed to recover a particular volume of gas. Standard sizes include:

• 4 SCFM P/N 925-117
• 8 SCFM P/N 925-119
• 20 SCFM P/N 925-112

Performance Efficiency

• Approximately 98%.  Actual efficiency will be dependent on charge pressure, cycle time and product volume.

Compressors

• Systems utilize oil-less piston compressors designed for industrial gas compression applications.

Electronics

• Microprocessor-based programmable logic controller housed in NEMA 12 enclosure.  System includes diagnostics and operating parameter displays.

Valving

• Rack and pinion pneumatically actuated ball valves.

Pressure Vessels

• ASME coded tanks designed for 300 psig service.  Actual number and volume of tanks will be dependent upon gas handling volume.  All manifolding, valving and tanks are helium leak tested to 1 × 10^-6 atm cc/sec at 300 psig.

Heat Exchangers

• Four high efficiency tube and shell exchangers ensure adequate cooling of process gas.

Process Monitors

• A group of thermocouples and pressure transducers monitor temperature and pressure in critical areas.  System includes real time monitoring capability and process alarm display.

Gauging

• Tank pressures are displayed on operator control panel.  System includes high pressure regulators for output supply and make-up process gas.

Utility Requirement

• Power: 440 Volt / 60Hz / 3 Phase
• Power Consumption: Approx. 18,000 Watts
• Cooling Water: 3-5 GPM at 70° F
