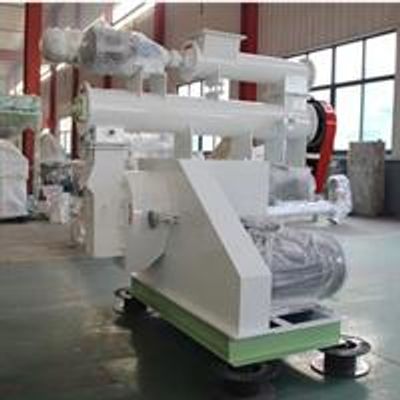

Victor - Model HMK SC -Small Ring Die Pellet Mil
Ring die pellet mill is widely used in pellets making industry and large pellets production line. The rind die pellet mill machine has a wide cylindrical shape and the die is vertical. Due to its high cost and big size, it is not as common as the flat die pellet mill, small ring die pellet mill is usually for making pellets business and other commercial purposes.As a professional Chinese manufacturer and supplier of small ring die pellet mills, apart from the high-quality ring die pellet mills, we also provide ring dies and rollers manufactured by us and specially match our ring die pellet mills. Therefore, you don`t need to worry how to find the suitable dies, rollers and other wearing parts.
- Power:55KW three phases
- Power typeielectricrry
- Capacity:3000-4000kg/h
- Final pellets size:1.5-15mm
- Used fonmaking chicken feed,cattle feed,livestock
- feed, fish feed
- Raw materials:grains,manure,straw meal,alfalfa,rice
- husk, etc
Why it is called Ring Die pellet mill?
The reason is that the main part of this small ring die pellet mill machine is a circular ring, which is called a "die1, and there are 2 rollers inside the ring to rotate and extrude the biomass in the middle to go through the die holes and cylindrical pellets are made.
Wood Ring Die Pellet Mill Features
- Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die adopts the quick removing clamps.
- The drive part of the machine including motor optimize the high quality SKF bearings made in Switzerland, which ensure high efficient and steady driving with low noise.
- The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
- Full Stainless steel strengthening feed conditioner, adopts the frequency-conversion speed regulating control to guarantee quality wood pellet.
- The alloy steel die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
- The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
- Permanent magnet device can remove impurities in the pelletizing process. Ring Die Pellet Mill Spare Parts( rollers, dies, roller shells)
