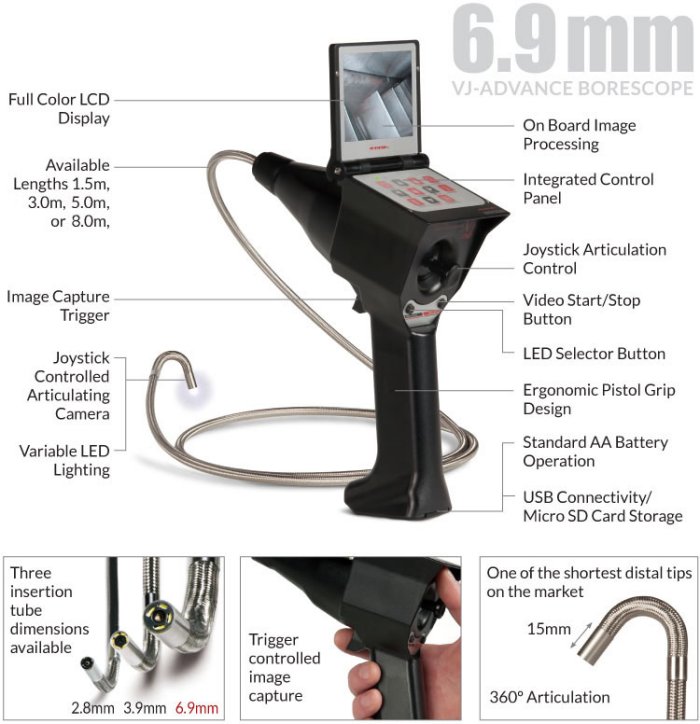

VJ-Advance - Model 6.9MM -Video Borescope

Joystick Articulation Control

The VJ-ADV provides precise control of the articulating tip through the use of a thumb-activated joystick. This joystick responds to the slightest movement of your thumb and allows full movement of the camera tip in all directions.

Combined with a trigger-activated image capture button and thumb-activated video recording button, the joystick allows easy one handed control of all key functions

High Navigation Ability

The rigid end of the bending section is only 15mm long. This short rigid section aids in navigating the insertion tube through curved or complicated structures.

Enhanced Features

• The VJ-ADV incorporates several new features, including:
• Stainless steel-braided insertion tube.
• The ability to record audio annotation along with video through the use of a mini-microphone.
• 2X digital zoom to magnify the image when you are unable to move the camera tip closer to the desired target.
• "Flash" image capture that allows you to record an image of a very dark area by releasing a burst of super-intense light from the LEDs.

Stand Alone Imaging Unit

The VJ-ADV is an all-in-one system that combines an articulating video borescope with an on-board imaging system. As you conduct an inspection still images can be captured with the click of your index finger and a button next to the joystick allows you to control video recording.

The control panel allows you to review stored images and video on the built-in 3.5" LCD display. As an option, you can view or record images and video on a laptop via the USB port or plug-in a conventional monitor

Battery Powered Operation

The VJ-ADV is fully portable and weighs only 23 ounces, including the required four AA batteries. Run time is typically 1.5 hours before the batteries need to be replaced. Because off the shelf disposable batteries are used, there is no risk of down time waiting for a recharging cycle.

Adjustable Brightness

The LEDs that illuminate the camera tip can be easily adjusted to one of four different brightness levels, or they can be turned off. This feature prevents light washout and helps to always provide a clear image.

Insertion Tube

• Outer Diameter: 6.9mm
• Length (meter/inch): 1.5m (59") / 3.0m (118") / 5.0m (197")
• Exterior: Stainless Steel Braid
• Waterproof: Insertion Tube and Tip
• Chemical Compatibility
• Machine Oil, Heating Oil, Engine Oil, 3.5 Concentrated Saltwater, Diesel Fuel

Optics

• Field of View: 72° / 54°
• Aperture: F 6.0
• Depth of Field: 4mm to ∞
• Illumination Method: 4 Super High-Intensity White LEDs

Articulation

• Articulation Control: Joystick with "Direct Control" Mechanism
• Rigid Distal End Length: 13mm
• LCD Monitor: 3.5 inch Color Digital LCD
• Still Capture / Record Function: Still Image (No LED Flash Capturing)

Observation Function

• 2x Digital Zoom: Yes
• External Temperature Display: Yes
• Temperature Alarm Displays: Yes

Input/Output

• Video Output: 2.5mm Stereo Mini Jack for RCA Video Output (NTSC/PAL)
• Terminal USB Output: Mini B Terminal Ver. 2.0 Video Capture, Output (Includes Driver/Viewer Software)
• Terminal Audio Output: Monaural Flat Jack for hands-free Earphone
• Terminal Microphone Input: Monaural Flat Jack for hands-free Microphone

• Storage

• Storage Media: MicroSD Card (Max. 2GB/recommended 512 MB)
• Still Image: JPEG 640x480 pixels
• Video:
• Motion JPEG (AVI file extension)
• 640x480 pixels - Voice recording
• function via the attached microphone
• Storage Capacity (with 1GB MicroSD Card): Still Image: Max. 500 pictures
• Movie Recording: Approx. 60 minutes (Normal
• Mode) / Approx. 9 hours (Time-lapse Mode)

Playback Function

• Still Image
• Thumbnail 9-image Display / Full Screen Display
• Video: Play, Pause

Menu Operation

• Image Adjustment Delete Stored Image Time and Date Setting: Brightness, Contrast, Hue, Sharpness:
• Language USB Mass Storage: Japanese / English:
• Operating Temp. (Insertion Tube)
• In Air: -30°c - 60°c (-22°F - 140°F), In Liquid: 10°c - 30°c (50°F - 86°F)
• Power Supply: AC: 100V - 240V
• Operating Time: Max. 1.5 hours (with four AA alkaline batteries)
• Weight: 650g / 23oz
• Carrying Case
