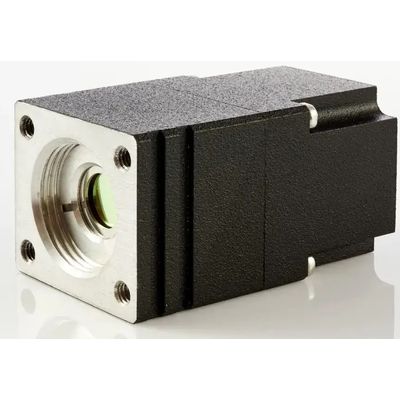

VIGO Photonics - Model SM-I-12 -Small-size IR Detection Module
FromVIGO Photonics
SM-I-12 is an ultra-small IR detection module. Thermoelectrically cooled, optically immersed photoconductive detector, based on HgCdTe heterostructure (PCI-3TE-12-1×1-TO8-wZnSeAR-36) is integrated with transimpedance, AC coupled preamplifier. There is a possibility to manually adjust gain of the signal. 3° wedged zinc selenide anti-reflection coated window prevents unwanted interference effects. SM-I-12 is easy to assembly in space limited measuring systems of FTIR applications.
Most popular related searches
- Spectral range: 2.0 to 13.8 μm
- Frequency bandwidth: 10 Hz to 1 MHz
- Adjustable gain
- Small size
- Quantity discounted price
- Fast delivery
- No minimum order quantity required
- FTIR spectroscopy
- Detector symbol : PCI-3TE-12-1×1-TO8-wZnSeAR-36
- Detector type : photoconductive
- Active element material : epitaxial HgCdTe heterostructure
- Optical area, AO : 1 mm × 1 mm
- Immersion : hyperhemisphere
- Cooling : 3TE
- Acceptance angle, Φ : ~36 deg.
- Window : wZnSeAR (3 deg. wedged zinc selenide anti-reflection coating)
- Preamplifier symbol : SIP
- Preamplifier type : transimpedance
- Signal output socket : MMCX
- Power supply and TEC control socket : AMP2×4 (part No. 280389-2)
- Mounting hole : no
- Built-in fan : no (external heatsink necessary)
- Built-in TEC controller : no
