Vihung - Model BS1873 -Y Pattern Globe Valve
VHV Bolted Bonnet Globe valves are heavy duty, outside screw and yoke type, bolted bonnet, rising stem, and rising handwheel type. These valves are highly efficient for service requiring frequent operation and throttling. These valves are handwheel operated or gear operated depending upon the size. Globe valves are generally considered for moderate control and regulation of fluid flow.
Most popular related searches
globe valve
fugitive emissions
electric actuator
valve operator
throttle valve
precision casting machine
hydraulic pneumatics
hydraulic actuator
pneumatic actuator
- VHV Globe valves are heavy duty, outside screw and yoke type, Bolted bonnet, rising stem and rising hand-wheel type.

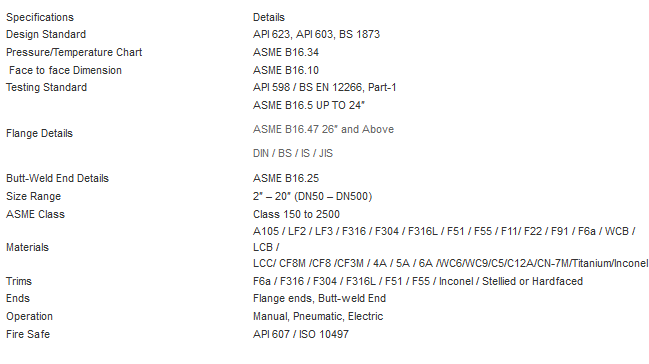

- Globe Valve design complies to API 623,, ASME B 16.34, BS 1873
- The straight through bore design assures minimum turbulence, erosion, and resistance to flow.
- Valves are handwheel operated and gear operated depending upon the size.
- Cast body precisely machined with integral flanges and Cast bonnet with integral yoke for better alignments and fewer parts.
- Disc is ground and lapped for better finish and sealing. The disc is integrally guided to assure true alignment between disc and valve body. The loose disc allows for proper sealing without damage.
- Rising stem with precision ACME thread with single or double start for quick operation.
- Stem packing is designed for optimum control of fugitive emission leakage to the atmosphere and is assured by the polished finish stem sealing area.
- Fugitive Emissions - Complies to API 624 and ISO 15848-1 (
- Live loading on packing can be provided as request.
- Back seat shall be either threaded or welded in to facilitate the replacement of packing under line pressure.
- Seat rings are welded in or integral to provide bubble tight joint.
- Two piece gland and gland flange arrangement for reduced stem wear.
- By-Pass, Lantern rings, special connection are as optional.
- Nace service either MR-01-75 or MR-01-03 as required.
- Valves can be supplied with Pneumatic, Hydraulic, or electric actuators and accessories like limit switch, etc can be provided as optional
- Fire Safe - By design and tested to API 607/ ISO 10497.
- CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
