Vihung - Model DBB -Trunnion Side Entry Modular Body Ball Valves
Trunnion Ball Valves Side Entry Modular Body (DBB),The valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.

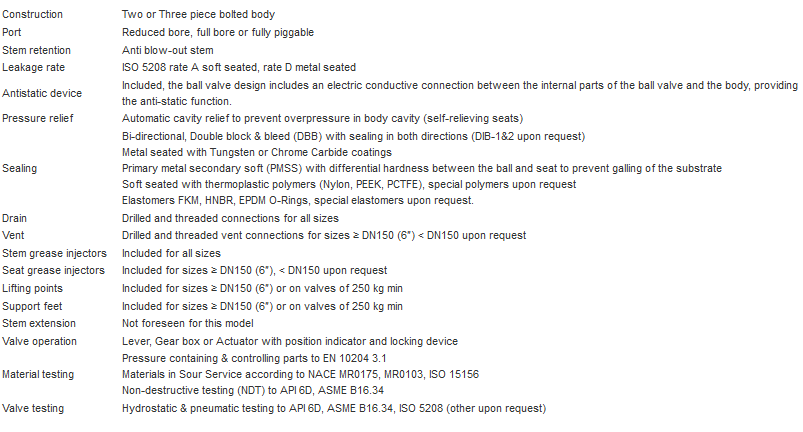

GENERAL CONSTRUCTION:
Trunnion ball valves have the obturator bounded by trunnions which do not allow axial displacements of the ball itself in the flow direction; line pressure compresses the seat onto the ball, the contact between surfaces generates the valve sealing; trunnion standard construction ensure automatic cavity relief in case of overpressure in body cavity; these valves can be selected for a wide range of applications with no specific limits to sizes and pressures. VIHUNG modular double block & bleed (DBB) valves are engineered and manufactured to provide a compact and reliable alternative to multiple instrument valve systems, reducing leak paths and saving installations and maintenance costs.
MATERIALS OF CONSTRUCTION:
- Low Temperature and Low Alloy Carbon Steel
- Stainless steel, Duplex and Super Duplex
- Nickel alloys
- Titanium
- Body Material: A105,A350 LF2.A182 F304/F316/F316L/F317/F321/F51/F51/F53/F55
- Ball and Stem Material: ASTM A182 F6A/17-4PH/XM-19/A182 F51/A182 F53/A182 F55
- Seat: RPTFE/DEVLQN/PEEKMrON/METALTO METAL
