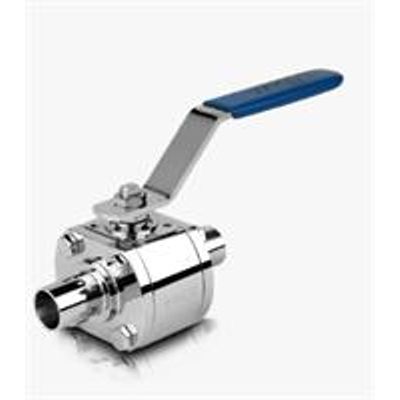

Vinco - Model RP Series -3 Pieces Bolted Floating Ball

FromVinco Valves

SHARE

Class:ASME BPE/ DIN 11850/ ISO 1127/ SMS 3008.True Bore:DN8 (¼”) to DN150 (6”).Construction StandardASME BPE 2012 / ASME B16.34 / ISO 17292 / ISO 5211.

Body/End Connections

A182 F316316L / 1.4435 BN2 / HASTELLOY C22/C276 / TITANIUM B348 Gr.2 / OTHERS

Seats/Cavity Fillers/Seals

TFM 1600 / PTFE

Packing

TFM 1600 / PTFE

Bolting

SS. 304

Extended Buttweld Ends

ASME BPE TUBE / DIN 11850 TUBE / ISO 1127 TUBE / SMS 3008 TUBE

Hygienic Clamp Ends

ASME BPE TUBE / DIN 11850 TUBE

Lockable Handle
Spring Return Handle
Extended Stem
Limite Switches
Bracket for Automation
Actuator
