Vinco - Model VD Series - 3 Pieces ...

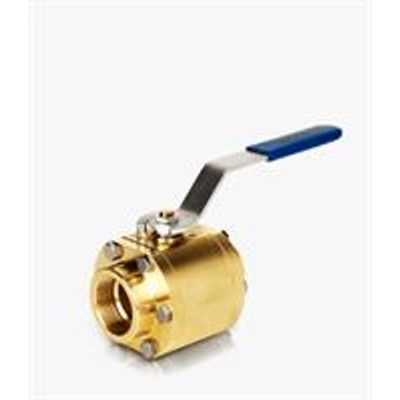

Vinco - Model VD Series -3 Pieces Bolted Floating Ball

FromVinco Valves

SHARE

Class:Cl300.Full Port:.DN 10 (3/8’’) to DN 50 (2’’).Construction StandardASME B16.34 / ISO 17292 / API 6D / ISO 14313 / MSS SP25.

Body/End Connections

BS1400 LG4/ BS1400 AB2/ OTHERS

Seat/ Seals

PTFE / TFM 1600

Packing

PTFE

Bolting

SS. 304

Threaded Ends

BSP/BSPP – ISO 2281
BSPT – ISO 71 / EN 102261/2
NPT – ASME B1.20.1

Socketweld and Socketweld Nipple Ends

SW – ASME B16.11

Lockable Handle
Spring Return Handle
Extended Stem
Limite Switches
Bracket for Automation
Actuator
