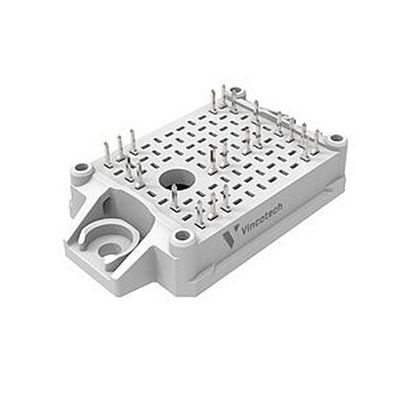

Vincotech flowPACK - Model 0B- 10-0B066PA006SB-M992F09 -Sixpack Rectifier

Product details

• Topology: Sixpack
• Inverter
• Open Emitter configuration
• Temperature sensor

Chip technology (main switch): IGBT3 LL

• Easy paralleling
• Low turn-off losses
• Positive temperature coefficient
• Short tail current
• Base isolation (e.g. ceramic): Al2O3
• Electrical interconnection: Solder pin
• Module simulation data available in VincotechISE:

• Module housing:flow 0B
• Mechanical connection to the PCB:2 towers
• Footprint:36.6 mm x 34.9 mm
• Height:17 mm
• Single screw heat sink mounting
• Ultra-compact design
• Thermo-mechanical push-and-pull force relief
