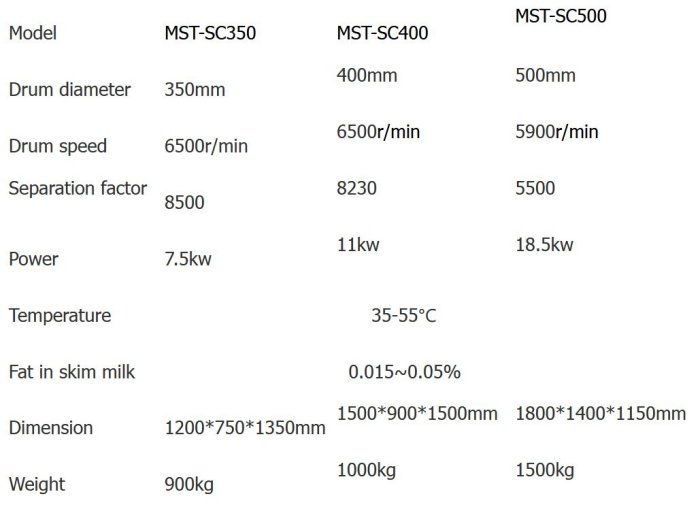

Shenzhou - Model MST-SC350, MST-SC400 and MST-SC500 -Virgin Coconut Oil Centrifuge
Product Introduction Of coconut Milk Cream Separator Machine : The Coconut milk cream separator is the most important equipment in dairy industry. Mainly used in the oil and water separation,skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
All the parts that may contact the feedstock are made of stainless steel. Prevent material corrosion. The drum has undergone accurate dynamic balance check, and the power transmission adopts a helical gear to transmit power, which has stable speed increase, prevents overload, low vibration, safety and reliability, and simple operation.

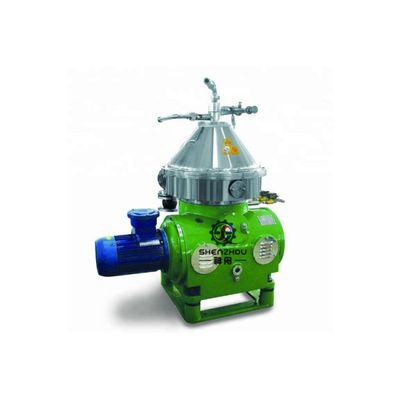

The disc separator is a vertical centrifuge, and the drum is mounted on the upper end of the vertical shaft, and is driven by a motor to rotate at a high speed through a transmission. The drum has a set of dish-shaped parts that are nested together. There is a small gap between the disc and the disc. The suspension (or emulsion) is added to the drum by a feed tube located in the center of the drum. When the suspension (or emulsion) passes through the gap between the discs, the solid particles (or droplets) settle to the disc under the action of a centrifuge to form a sediment (or liquid layer). The sediment slides along the surface of the disc to separate from the disc and accumulates in the portion of the drum having the largest diameter, and the separated liquid is discharged from the liquid outlet to the drum. The function of the disc is to shorten the settlement distance of the solid particles (or droplets) and enlarge the settlement area of the drum. The drum has greatly improved the productivity of the separator due to the installation of the disc. The solids accumulated in the drum are dismantled by the drum after the machine is shut down, or are discharged from the drum by the slag discharge machine without stopping the machine.
