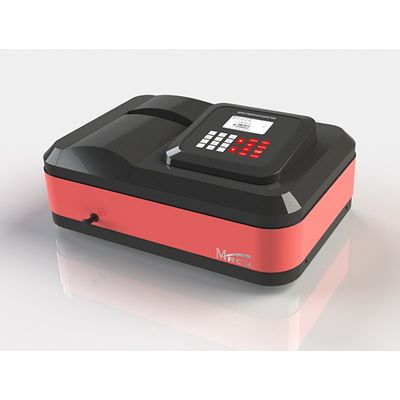

MacylabModel V-1500 -Visible Spectrophotometer

SHARE

Single-chip microcomputer control, LCD Screen (128*64 Dots). Large LCD display can display multiple sets of data. Huge memory space to store multiple sets of data and curves. Auto zero,100% adjustment function. Auto wavelength adjustment. Auto filter changing, large sample pool (5mm ~ 100mm). Standard samples having a maximum ten-point standard curve measurement functions built. Direct input by K, B factor for quantitative measurement standard curve. Can be directly input standard sample and the corresponding standard concentration values and establish a standard curve for quantitative measurement. Switch off power save standard curve parameter measuring set.

Most popular related searches
  • General Parallel printer interface with or slightly beat interfaces can print the title bar, the measurement data, curve parameters, the standard curve and the curve sample points
  • With USB interface
  • PC control can be achieved through more accurate and flexible measurement requirements (standard) Technical Specifications
  • Wavelength Range: 320~1000nm
  • Band Width: 2nm
  • Wavelength Accuracy: ±0.5nm
  • Wavelength Repeatability: ≤0.2nm
  • Photometric Accuracy: ±0.3% τ
  • Photometric Repeatability: 0.15% τ
  • Stray Light: ≤0.05% τ (340nm NaNO2)
  • Stability: 0.001A/30min@500nm
  • Photometric Mode: T,A,C,E
  • Wavelength Setting: Automatic
  • Photometric Display Range: -0.3~3A
  • Display mode: LCD Screen (128*64 Dots)
  • Detector: Import Silicon Photodiode
  • Light Source: Import Tungsten Lamp
  • Power Requirement: AC 220V/50Hz 110V/60Hz
  • Power: 120W
  • Dimensions(W*D*H): 480×350×220mm
  • Weight: 11Kg
