VisiCon - Waste Collection System

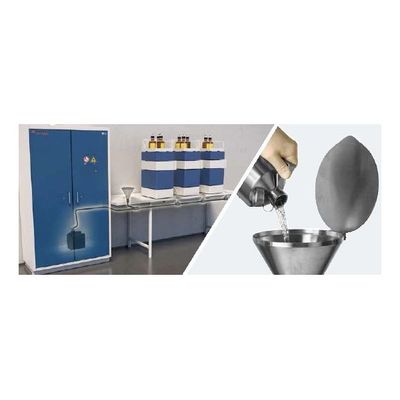

The VisiCon Waste Collection System is the perfect addition to DÜPERTHAL safety storage cabinets for active storage. The system can be used to collect together larger quantities of solvent wastes in accordance with the regulations, centrally at one collection point, e.g. a DISPOSAL line safety storage cabinet. The VisiCon collection system is also characterised by its high media resistance. All components are conductive and prevent the formation of ignition sparks.
The system can be extended virtually without limit and the modular concept can be individually adjusted to each process on site. The diverse connection options are suitable for funnel systems and
HPLC connections, and can also be adapted to individual requirements. The easy startup due to ready to plug-in, preassembled connections enables flexible workflows and more efficient organisation of the work processes.
- Secure collection of hazardous substances in accordance with TRGS 509 and minimisation of harmful gases and vapours (emissions) in the workplace.
- Continuous earthing for the prevention of ignition hazards as a result of electrostatic discharges in accordance with TRGS 727.
- Higher efficiency by merging wastes from several workplaces to a central collection point.
- Process reliability through defined workflows, additional channels for the disposal of solvents are avoided.
- Approved explosion protection concept for simplified recording in your explosion protection document within the framework of the risk assessment according to TRGS 400.
- Flexible connection to DÜPERTHAL system solutions for active storage.
- The almost infinitely expandable modular system can also be integrated at a later stage.
We will be happy to analyse the current situation with you on site and provide you with an optimal disposal solution. We can provide installation and commissioning on site within the framework of our full service.
Your added advantage with VisiCon!
Efficient workflow in accordance with the regulations
Disposal of solvent wastes takes place directly at the workplace; additional channels for the disposal of waste are avoided.
Sustainable and flexible disposal system
The modular system can be optimally integrated in any work or laboratory situation and can be expanded almost infinitely.
Economic and certified solution
The hazardous substances can be directed from several systems/workplaces to a certified safety storage cabinet.
For a high level of media resistance, all metallic components are manufactured from high-quality stainless steel 1.4571. The hose system is made of dissipative PTFE-el and has a smooth finish to guarantee a good media flow. The hoses are also wrapped in a spiral on the outside for protection against mechanical stress.
1 Frunnel systems
Safe disposal of hazardous substances via a funnel with a direct connection to the disposal container.
2 Direct connection of HPLC systems
Simple connection of capillary and media hoses via a large selection of bench penetrations and adapters.
3 Distributors and smooth-walled hose systems
The distributors and hose systems are available in various diameters - the right solution for every viscosity.
4 Prevention of ignition hazards
All components are electrically conductive, the system for the connection to earthing is prepared according to TRGS 727.
5 Tested and certified disposal systems
The media are collected in system solutions with special explosion protection devices, e.g. DISPOSAL BENCH line, in accordance with TRGS 509 and TRGS 727.
6 Profile system - flexible and robust
The flexible profile system is the alternative to the bench penetration and can be used as, for example, a standing surface for HPLC systems.
