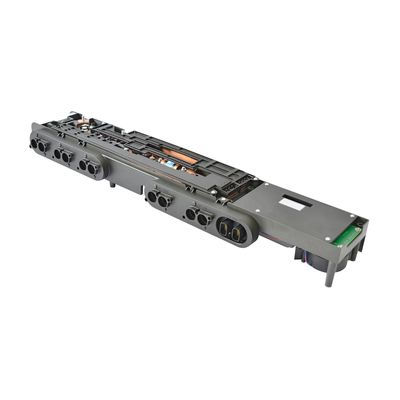

Vitesco - High Voltage Battery Junction Box
Junction box for (dis-)connection of up to two battery cell stacks to the vehicle high voltage powertrain and auxiliary / charging devices as well as overcurrent detection and interruption.
Most popular related searches
- Localized HV interfaces and ease of serviceability
- Aluminum and copper bus bar design possible
- Different contactor and switch off components
- Easily customizable to various battery designs
- Interfaces: DC charging, auxiliaries
- Integration of electronics (BMS / DC/DC) possible
- Voltage: 450 V or 800 V
- Max. current capability of +/- 750 A
- Charging Power: Up to 350 kW
- Overcurrent switch-off capability of up to 2000 A with contactors or up to 25kA with conventional or pyrotechnical fuses
- Battery Electric Vehicle (BEV)
- Plug-In Hybrid Electric Vehicle (PHEV)
- Mild Hybrid Electric Vehicle (MHEV)
- Gasoline
- Diesel
- Passenger Car
- Commercial Vehicle & Off-Highway
- 2-Wheeler & Powersports
