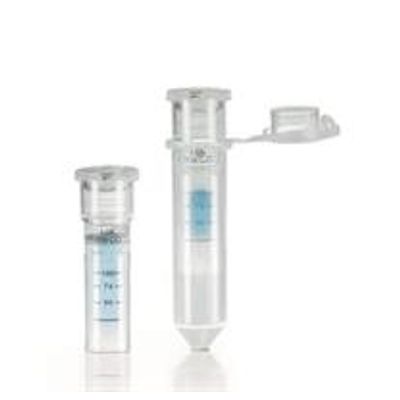

Vivaspin - Model VS0172 -Centrifugal Concentrators
500 µl - 5 µl. One step procedure for small sample amounts. Vivaspin centrifugal concentrators are disposable ultrafiltration devices for the concentration of biological samples. Vivaspin® 500 centrifugal filter units offer a simple, one step procedure for sample concentration with starting volumes up to 500 µl. They can effectively be used in fixed angle rotors accepting 2.2 ml centrifuge tubes. The patented vertical membrane design and thin channel filtration chamber (US 5,647,990), minimises membrane fouling and provides high speed concentrations. Vivaspin® 500 units are available with PES membrane in a wide range of molecular weight cut-offs. Concentrate recoveries of > 90% can be reached in less than 30 min. The dead stop pocket prevents concentration to dryness.
- High flux PES membrane
- High retentate recovery > 90 %
- Vertical membrane design for ultra fast concentration
- Universal rotor compatibility
- Safe sample concentration due to dead-stop volume
- Convenient concentrate recovery by pipetting
- Volume graduation for easy reading/monitoring
-
Width10 mm
-
Volume Range0.1 – 0.5 mL
-
Pore size0.2 µm
-
Primary Product TypeUltrafiltration Devices
-
Membrane MaterialPolyethersulfone (PES)
-
MembranePolyethersulfone (PES)
-
Pack Size100
-
Electrical / Battery itemNo
-
Animal ComponentsNo
-
Concentrator CapPolycarbonate (PC)
-
Concentrator Body/SleevePolycarbonate (PC)
-
Overall length50 mm
-
Hold-up volume< 5 µL
-
Active Membrane Area0.7 cm²
-
Dead stop volume5 µL
-
Fixed Angle Rotor600 µL
-
CertificationNone
-
Filtrate VesselPolypropylene (PP)
-
Application
- Buffer & Media
- Cell Removal / Harvest
-
Area of ApplicationClarification
-
MarketResearch
-
Device TypeCentrifugal Ultrafiltration Devices
-
Sample Type
- DNA
- Protein
- Peptide
- Urine
- Nanoparticles
- Virus
