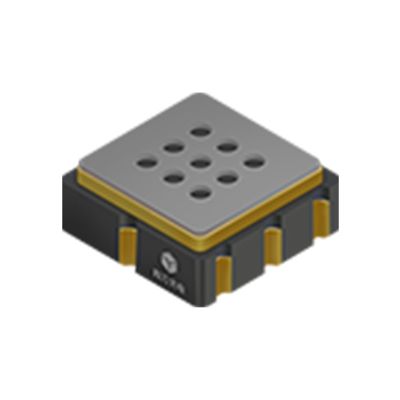

Wuhan Cubic - Model VM-1002 -VOC and NO2 Gas Sensor
The VOC and NO2 gas sensor VM-1002 adopts advanced broad spectrum and indirectly heated structure. The sensor consists of a ceramic heater coated with nanoscale semi-conductive material MOX and doped with appropriate microelement, it is very sensitive to nitrogen dioxide, formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke and other volatile organic components. The sensor has good consistency and high sensitivity after aging test, debugging, calibration.
- Simutaneous VOC and NO2 concentration output.
- High sensitivity and consistency.
- High integration module.
- Temperature compensation algorithm.
- Low power consumption.
- Fast response.
- Measuring gas: Nitrogen dioxide, formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, cigarette smoke, etc
- Responding time: ≤5s
- Preheating time: ≤120s
- Recovering time: ≤20 seconds
- Working temperature: 0~50℃,0~ 95% (non-condensing)
- Storage temperature: -20~60℃ 0~ 95% (non-condensing)
- Power supply: DC 5±0.2V
- Working current: ≤100mA
- Output: 0-3 levels
- Lifespan: ≥10 years
- Connector: XH2.54-4 vertical socket
