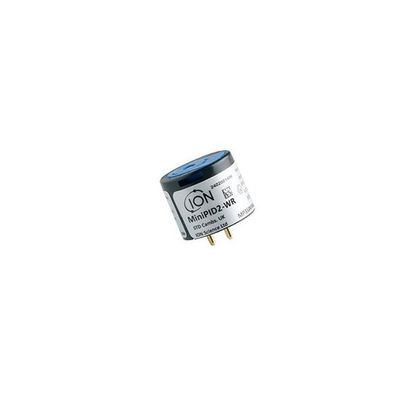

PPM WR - VOC Gas Sensor

The MiniPID 2 PPM Wide Range sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.

The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 PPM Wide Range sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.

Performance

• Electrode Stack Colour: Blue
• Minimum Detection Limit: 500 ppb
• Range: >10,000 ppm
• T90 Response Time (Seconds): <3
• Sensitivity: >0.4 mV/ppm @ 100 ppm
• Lamp Energy: 10.6 eV

Power and Signal

• Supply Voltage (using internal regulator): 3.6 – 18 V (non intrinsically safe 10 – 18 V)
• Supply Voltage (using a regulated power supply): 3 – 3.6 V
• Current: 20 – 32 mA (130 mA for 100 ms at start up)
• Power Consumption: 100 mW at 3.3 V
• Output Signal (using internal regulator): 0 – 3.2 V
• Output Signal (using a regulated power supply): 0 to rail voltage – 0.1 V

Environmental

• Temperature Range: -40 to 65 °C
• Relative Humidity Range: 0 – 99% RH, non-condensing

Lifetime and Warranty

• Expected Life: >5 years
• Lamp Life: 10.6 eV 10,000 Hours
• Warranty: 10.6 eV lamp and MiniPID Body –12 months 11.7 eV lamp – 3 months

Approvals

• Europe Certification: ATEX
• North America Certification: UL
• Worldwide Certification: IECEx
• Patents: US 7,046,012 EC 1474681
• urasian Customs Union: No. EA∋C RU C-GB.HA65.B.00635/20
