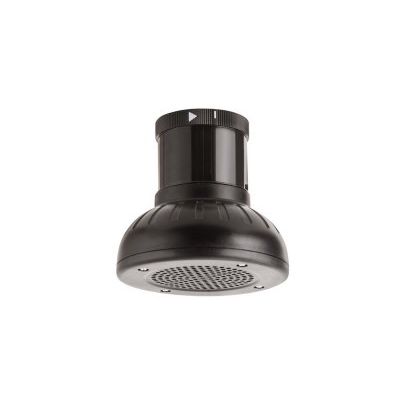

WERMA - Model 24VDC BK -Vocal Element
102 dB loud vocal element with excellent tone and sound quality, Plays customer-specific audio files (signal tones, music and spoken text), Easy transfer of audio files and simple operation, Sound output level can be triggered externally, Creation of individual playlists and playback modes possible
Part No.: 844.860.55
Series: KombiSIGN 70
Diameter in mm: 125 mm
Voltage: 24V DC
Sound output: 102
Protection rating: IP54
Mechanical data
Height: 118 mm
Diameter: 125 mm
Materials: PC
PC/ABS
Housing colour: Black
Protection category: IP54
Tension relief: Not present
Working temperature minimum: -20°C
Working temperature maximum: +50°C
Weight with packaging: 786 g
Product weight: 692 g
Electrical data
Operating voltage: 24V
Operating voltage type: DC
Operating voltage tolerance: +/- 10%
Rated operational voltage: 24 VDC
Rated operational current: 400 mA
Rated inrush current: 500 mA
Protection class: Protection class 2
Pollution degree: 3
Optical data
Service life optical: 5,000 h minimum
Acoustic data
Volume (max) at 1m distance: 102,0 dB (A)
Volume adjustable: Potentiometer
Volume adjustment range: 10-100%
Acoustic service life: 5,000 h minimum
Approval data
Conforms with CE: Yes
Conforms with RoHS directive: Yes
WEEE: Yes
Conforms with ATEX-directive: No
Conforms with CCC: No
Conforms with UL: No
Conforms with FCC: No
Conforms with IC: No
EAC certificate available: Yes
Conforms with UKCA (Importer): Yes (WERMA (UK) Ltd.)
Conforms with CMIM: No
Conforms with AS-I: No
ICAO Certification: No
Conforms with DNV: No
Conforms with RoHS CN: No
Conforms with VdS: No
