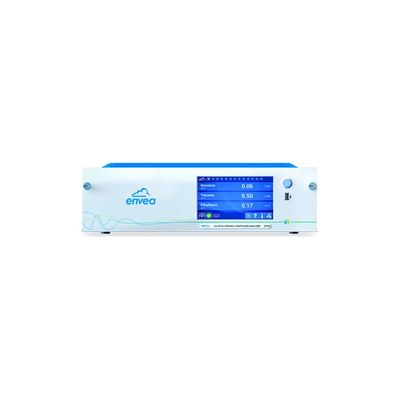

ENVEA - Model VOC72e -Volatile Organic Compounds Analyzer BTEX
FromENVEA
Gas chromatography (GC) coupled with a PID detector. VOC monitor QAL1 certified to EN 14662-3 standard for benzene measurement. Compact and fully automated analyser providing equal performance to the laboratory chromatographs; particularly well-suited for fixed or mobile ambient air quality monitoring stations. Standard measured compounds: Benzene, Toluene, Ethylbenzene, m+p-Xylene, o-Xylene, 1-3 Butadiene (other compounds on request).
Most popular related searches
ambient air quality monitoring system
BTEX
ambient air quality monitoring
ambient air monitoring
ambient air quality
air quality monitoring system
volatile organic compounds analyzer
air quality monitoring
air quality monitoring gas
ambient air
- Standard measured compounds: Benzene, Toluene, Ethylbenzene, m+p-Xylene, o-Xylene, 1-3 Butadiene…
- Performs all the functions, such as: sampling, analysis and data management, in a simple and completely autonomous mode
- Self-contained, completely automated and ready to use in less than 30 minutes
- GC column equipped with an innovative liquid-cooler; retention times are stable even with a fluctuating temperature
- Long-life capillary column
- High sensitivity, stable and linear response PID detector
- Ultrafast trap heater (heating rate >160°C/second)
- Quick check of the chromatogram peaks possible directly on-screen, without the use of a computer
- Low memory effect allowing the automatic calibration of the analyser on a single cycle without an external PC
- Ambient air monitoring
- Monitoring of industrial sources emitting VOCs
- Photochemical pollution studies (stationary and mobile laboratories)
- Other component upon request: hexane, trimethylbenzene, i-octane, styrene…
- Measured parameter: VOC (Benzene, Toluene, Ethylbenzene, m+p-Xylene, o-Xylene, 1,3 Butadiene)
- Technology: Gas Chromatography
- US-EPA Approval / QAL 1 Certification: YES
- Measurement ranges: 0-1000 µg/m3
- Measurement units: ppb, ppm, µg/m3 (user-selectable)
- Lower Detectable Limit (2σ): ≤ 0.025% µg/m3 at 0.5 µg/m3 benzene
- Noise (σ): ≤ 0.5%
- Zero drift: ≤ 4% / 15 days
- Span drift: < 1% / 7 days
- Sample flow rate: 50 ml/min
- Temperature range: 0°C to +30°C
- Data storage: 1 year
- Included I/O: 1LAN / 1USB / WIFI / RS232-422
- Weight (Kg): 12.5
- Dimensions mm (LxWxH): 483 x 606 x 133
- Chassis: 19″ Rack, 3U
- Power supply: ‘100~250Vac, 50/60Hz + ground
Main Options:
- ESTEL 2 max electronic boards with:
- 4 independent analog inputs (0-2.5 V) / outputs (0-1 V, 0-10 V, 0-20 mA, 4-20 mA)
- 4 remote control inputs
- 6 dry contacts
- RS232 or RS422 serial interface (max. one Estel board if this option is used)
- Span gas input (atmospheric pressure)
- Span gas input under pressure (1 bar) for permanent connection to a gas cylinder
Compliance With:
- ISO 13964, 2008/50/EC, EN14662-3:2015, EN15267-1:2009
- EN15267-2:2009, 40 CFR PART 53 and 40 CFR PART 58
- QAL 1 certified by the TÜV to N° 0000038507
