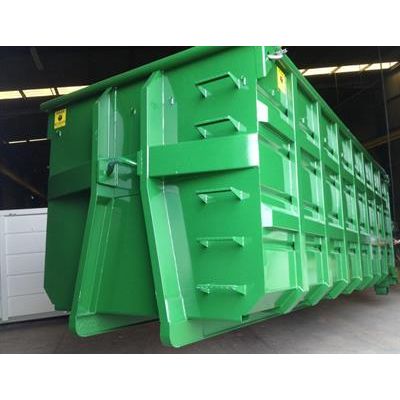

Volga - Special Scrape Metal Hooklift Container
Open top hooklift containers special scrape model. Volga - specialist in manufacture of hooklift system containers of any type of 6 up to 41 m3 destined for collect and transport of industrial waste, construction waste, domestic waste; fronloaders 5-15 m3, ro ro hook lift containers of closed type, skips and city containers (mini skips of class 1 for 3.5 t), dump bins, hooklift sledges and platforms including for agricultural needs; different steel roll-on roll-off containers for rent to individuals and businesses. Containers for waste collection sites and local communities.
Norm : Correspond to norm:
- NF R 17 108 bennes classe 2
- DIN 30722-1
- SS 3021
Sledges : European profile IPN 180, reinforced at the central part for the containers having 7 m length
Bottom : Sheet thickness 5 mm, lateral sides at 45 degrees to the bottom;
Cross-pieces and semi-cross-pieces 102x52x3 mmwith a spacing of axes of 299 mm.
Side-panels : Sheet thickness 3 mm ; corner 50x50x5 continuously welded to the tube 120x80x4 mm
Longitudinal ribs with a spacing of 400 mm ;
1-2 horizontal (depends on container heigth) bands upon each lateral side of container
Pillars of bended steel in channel shape 110x68x3 with axe spacing of 598 mm ;
Edged tube profile 120x80x3 mm welded continuously throughout height of 3 mm-sheets ;
2 rows of hood hooks.
Front panel : Sheet thickness 3 mm;
Arrow-execution mounting of channel UPN 20 ;
Stiffening plate under hook ;
Hook Ø 50 made of special steel and stiffening bracket ;
2 rows of hood hooks.
Reinforced ear doors : On fixed frame bended steel in channel shape 130x80x5 mm ;
2 door leaves, sheet thickness 3 mm, 6 vertical bended steel in channel shape 110x70x3;
1 built-in ladder (for heigth more than 1500 mm) ;
Reinforced hinges of Ø 30 semi-hard steel mm and lubricators;
Locking gear made of solid bar and lower double locking
Side gear to adjust unlocking and locking ;
2 rows of hood hooks ;
2 rear rollers of Ø 200 mm with caprolon ring axe of Ø 40 mm , position: external or internal
Other points : top angles on front panel very much reinforced
Surface treatment: containers are delivered degreased, phosphated, with mastix applied, primecoated on the internal and external sides + painted on the external sides into finish paint, 1 RAL colour
Thickness of paints minimum 80-100 microns.
all technical modification can be brought without prior notice
