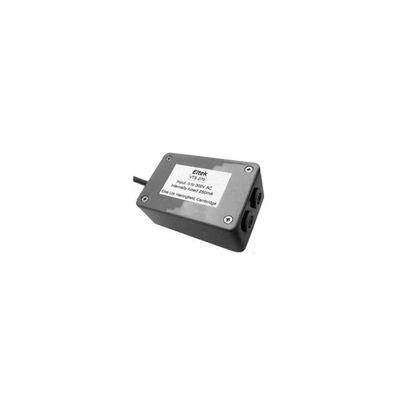

Eltek - Model VTS - 270 -Voltage Transducer
FromEltek Limited
The Eltek VTS Voltage Transducer enables Squirrel voltage inputs to be safely connected to an AC supply for AC voltage measurements. The VTS is potted for rugged and reliable performance. The item is non-repairable in the unlikely event of failure.
Most popular related searches
- Materials used: Potted and permanently sealed Grey ABS enclosure
- Dimensions: (L 88 x W 58 x D 40) mm
- Weight: Approximately 440g
- Input Voltage: 0-300V AC max. 45-65Hz
- Fuse rating: 250mA
- Input terminal: 2 x 4mm red shrouded safety sockets for use with
- 4mm shrouded plugs (not supplied)
- Output: Compatible with Squirrel AC inputs
- Lead assembly: 2m terminated in 3 pin 180° DIN Plug
- Environment: –30 to +55°C (Indoor use only)
- Compliant to: EN 60950
When used with the Squirrel data logger the following ranges are provided:
Voltage Range : Resolution
- 0-300 : 0.3v
- 170-270 : 0.1v
