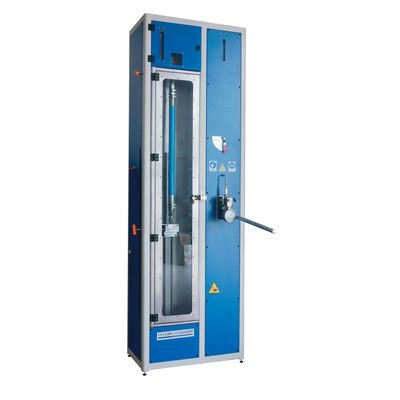

HYDRO+POWER - Model BCEV1000PM -Volumetric Expansion Test Bench
FromOP S.r.l.
The BCEV1000PM test bench allows you to carry out tests to determine the volumetric expansion on flexible pipes by reaching the test pressure in accordance with the following standards: ISO6801 – ASTM D380.
Most popular related searches
test chamber
chamber test
digital manometer
safety system
demineralized water
pressure gauge
burette
water demineralization
manometer
water demineralizer
- Maximum test pressure: 1000 bar
- Allowed pipes: from 3/16” to 2”
- Pipe length: max 1700 mm
- Flow rates:
- - 50 cm3 / lever operation up to 35 bar
- - 2 cm3 / lever operation up at maximum pressure
- Manifold connection: 1/2” BSPP
- Set of burettes to cover the various measurement ranges
- Test chamber dimensions: 1800 x350x120 mm (h; w; d)
- Battery-powered digital manometer FS 1000bar, cl. 0.1% FS
- Analogue pressure gauge FS 1000 bar, cl.0.1% FS
- Test liquid: demineralised water
- Lock on the protective door of the test chamber
- Test chamber door with polycarbonate inspection window
