JIANGBEI - Model LXH-E - Volumetric ...

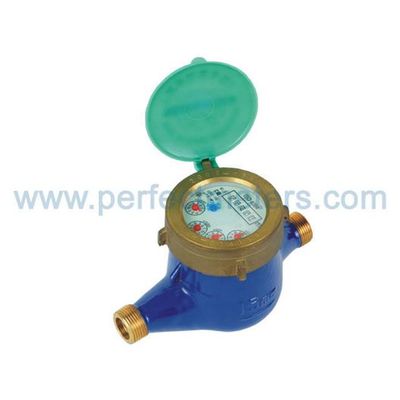

JIANGBEI - Model LXH-E -Volumetric Water Meter (horizontal Type)

FEATURES Adopt volumetric rotary piston principle of measurement with conformity to ISO 4064 class C,D High sensitivity enables the accurate measurement even at a low flow rate of 4 L/h Mechanical parts use of high-quality material to ensure a stable characteristic WORKING CONDITION Water temperature50 Water pressure1MPa COMPLIANCE WITH STANDARD ISO 4064 (GB/T778-1996) INDICATING ERROR At low zone is5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary At high zone is2% from transitional flow rate(qt) to overload flow rate(qs)
