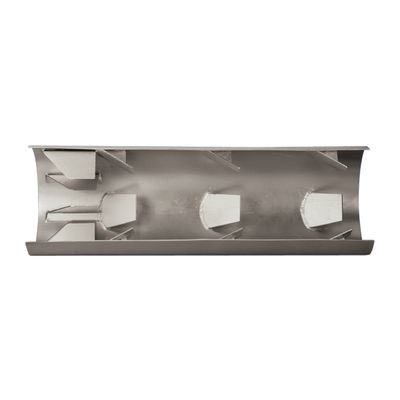

Vortab - Model VIS -Insertion Sleeve Flow Conditioner
The VORTAB VIS Insertion Sleeve flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows, valves, blowers, compressors and other disruptions that commonly occur in piping and duct runs.
Most popular related searches
flow conditioner
blower compressor
flow profiler
flow profiling
control valve
blower
velocity profiler
velocity profile
velocity profiling
flow calibration
- Piping with inadequate straight-runs
- Temperature and pressure stratification
- Process conditioning for control valves, blowers, compressors, burners and other critical process equipment
- Flow conditioning for calibration and test benches
- Processes that require repeatable, symmetric and swirl-free velocity flow profiles
Process Media:
- Gases, liquids and slurries
Materials of Construction:
- 316L stainless steel
- Carbon steel
- Hastelloy C
- Other materials of construction available
Inside Diameter of Pipe or Duct:
- Customer specified from 0.87 to 48 inches [22 to 1220 mm]
Pipe or Duct Process Connection:
- Field welded in place
- Captured flange

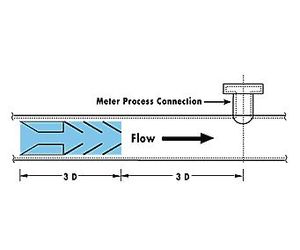

Flow Conditioner Length:
- 3 pipe diameters
Custom Configurations:
- Contact FCI
The VIS Insertion Sleeve configuration allows for direct mounting in existing or specially sized pipe sections.
