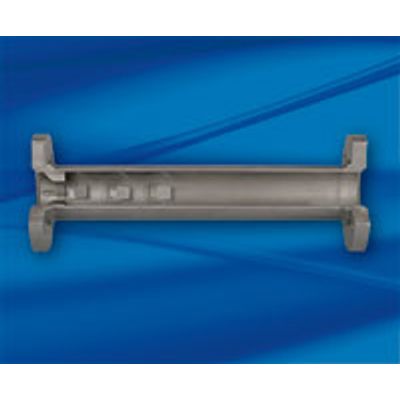

Vortab - Model VMR -Meter Run Flow Conditioner

• Piping with inadequate straight-runs
• Temperature and pressure stratification
• Process conditioning for control valves, blowers, compressors, burners and other critical process equipment
• Flow conditioning for calibration and test benches
• Processes that require repeatable, symmetric and swirl-free velocity flow profiles

Process Media:

• Gases, liquids and slurries

Materials of Construction:

• 316L stainless steel
• Carbon steel
• Hastelloy C
• Other materials of construction available

Pipe Size:

• 2 inch [51 mm]
• 3 inch [76 mm]
• 4 inch [102 mm]
• 6 inch [152 mm]
• 8 inch [203 mm]
• 10 inch [254 mm]
• 12 inch [305 mm]
• Other pipe sizes available

Pipe Schedule:

• Schedule 40
• Schedule 80
• Other pipe schedules available

Pipe Connection:

• Weld preparation
• Flanged, up to 600 lb rating
• Male NPT, up to 4 inch pipe size

Flow Conditioner Length:

• For 2 inch: 8 pipe diameters
• For 3 inch and larger: 7 pipe diameters

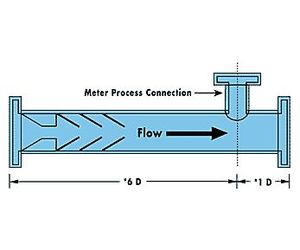

Flow Meter Process Connection:

• 0.75 inch, 1 inch or 1.25 inch female NPT
• 1.25 inch male NPT
• ANSI 150 lb., 300 lb. or 600 lb. raised face flange
